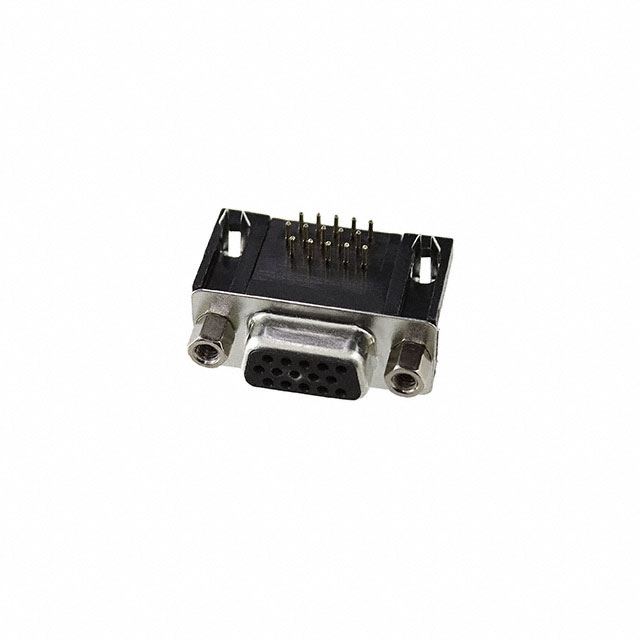

HDL15-SL-C
ActiveAdam Tech
CONN D-SUB HD RCPT 15P R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
HDL15-SL-C
ActiveAdam Tech
CONN D-SUB HD RCPT 15P R/A SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HDL15-SL-C |
|---|---|
| Backset Spacing | 8.89 mm |
| Backset Spacing | 0.35 in |
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Shell Material, Finish | Steel |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Shell Size, Connector Layout [custom] | High Density |
| Termination | Solder |
| Voltage Rating | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.85 | |
| 10 | $ 1.42 | |||
| 25 | $ 1.27 | |||
| 40 | $ 1.21 | |||
| 80 | $ 1.12 | |||
| 230 | $ 0.99 | |||
| 440 | $ 0.93 | |||
| 945 | $ 0.86 | |||
| 2400 | $ 0.78 | |||
Description
General part information
HDL15-SL Series
15 Position D-Sub, High Density Receptacle, Female Sockets Connector
