CAB006A12GM3

Active

Wolfspeed

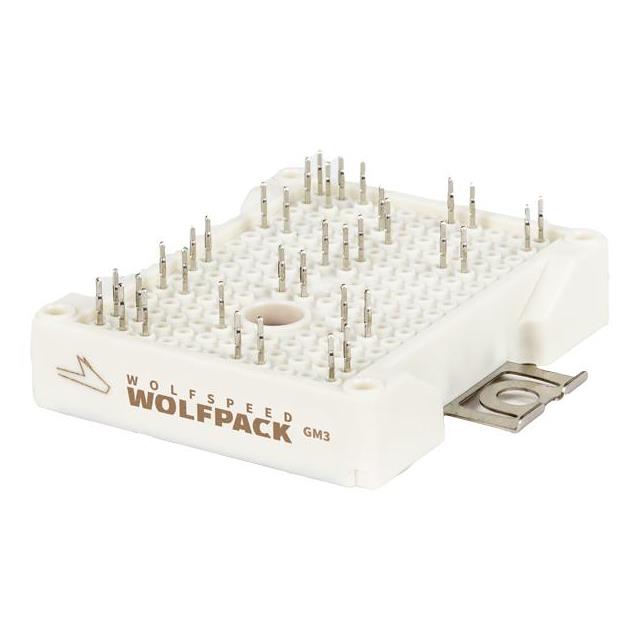

SIC 2N-CH 1200V 200A

Search across all available documentation for this part.

Active

Wolfspeed

SIC 2N-CH 1200V 200A

Technical Specifications

Parameters and characteristics for this part

Specification	CAB006A12GM3

Configuration	2 N-Channel (Half Bridge)
Current - Continuous Drain (Id) @ 25°C	200 A
Drain to Source Voltage (Vdss)	1200 V
Drain to Source Voltage (Vdss)	1.2 kV
Gate Charge (Qg) (Max) @ Vgs	708 nC
Input Capacitance (Ciss) (Max) @ Vds	20400 pF
Mounting Type	Chassis Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Rds On (Max) @ Id, Vgs [Max]	6.9 mOhm
Technology	Silicon Carbide (SiC)
Vgs(th) (Max) @ Id	3.6 V

Part	Current - Continuous Drain (Id) @ 25°C	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Configuration	Gate Charge (Qg) (Max) @ Vgs	Vgs(th) (Max) @ Id	Input Capacitance (Ciss) (Max) @ Vds	Technology	Drain to Source Voltage (Vdss)	Drain to Source Voltage (Vdss)	Mounting Type	Rds On (Max) @ Id, Vgs [Max]
Wolfspeed CAB006A12GM3	200 A	150 °C	-40 °C	Module	2 N-Channel (Half Bridge)	708 nC	3.6 V	20400 pF	Silicon Carbide (SiC)	1200 V	1.2 kV	Chassis Mount	6.9 mOhm
Wolfspeed CAB006M12GM3		150 °C	-40 °C	Module	2 N-Channel (Half Bridge)	708 nC	3.6 V	20400 pF	Silicon Carbide (SiC)	1200 V	1.2 kV	Chassis Mount	6.9 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Mosfet Array 1200V (1.2kV) 200A (Tj) Chassis Mount
