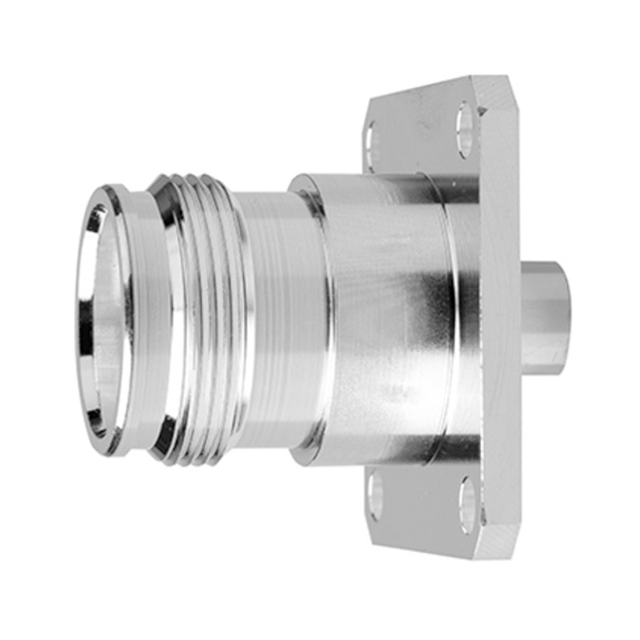

100025300

Active

Telegartner Inc

4.3-10 JCK STR FLNG SD/SD G10

Search across all available documentation for this part.

Active

Telegartner Inc

4.3-10 JCK STR FLNG SD/SD G10

Technical Specifications

Parameters and characteristics for this part

Specification	100025300

Body Finish	Silver
Body Material	Brass
Center Contact Material	Copper Alloy
Center Contact Plating	Silver
Connector Style	4.3/10
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder

Part	Body Finish	Body Material	Center Contact Plating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Termination	Frequency - Max [Max]	Connector Type	Connector Style	Mounting Feature	Center Contact Material	Dielectric Material	Housing Color	Impedance	Shield Termination	Number of Ports
Telegartner Inc 100025300	Silver	Brass	Silver	90 °C	-55 °C	Solder	6000 MHz	Female Socket Jack	4.3/10	Flange	Copper Alloy	Polytetrafluoroethylene (PTFE)	Silver	50 Ohms	Solder	1
Telegartner Inc 100025301	Silver	Brass	Silver	90 °C	-55 °C	Solder	6000 MHz	Female Socket Jack	4.3/10	Flange	Copper Alloy	Polytetrafluoroethylene (PTFE)	Silver	50 Ohms	Solder	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4.3/10 Connector Jack, Female Socket 50 Ohms Panel Mount Solder
