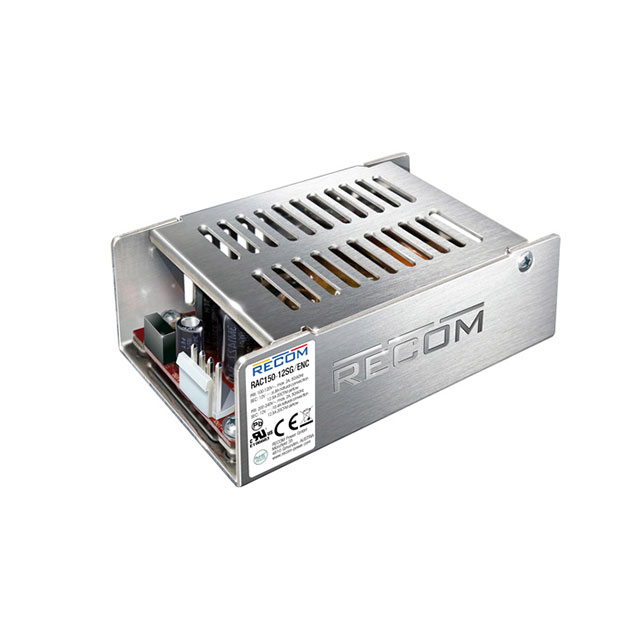

RAC150-12SG/ENC

Active

RECOM Power

AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 150 W, 12 V, 12.5 A

Search across all available documentation for this part.

Active

RECOM Power

AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 150 W, 12 V, 12.5 A

Technical Specifications

Parameters and characteristics for this part

Switching Power Supplies 120W 90-264Vin 12Vout 12.5A

Part	Power (Watts)	Power (Watts)	Features	Operating Temperature [Max]	Operating Temperature [Min]	Minimum Load Required	Efficiency	Mounting Type	Voltage - Isolation	Voltage - Output 1	Applications	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Current - Output 1	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Number of Outputs	Type	Size / Dimension [y]	Size / Dimension [z]
RECOM Power RAC150-12SG/ENC	150 W	125 W	PFC Universal Input	70 °C	-30 °C		91 %	Chassis Mount	3000 V	12 V	ITE (Commercial)	90 VAC	264 VAC	CB CE cURus EAC	12.5 A	105 mm	1.38 in	35 mm	62 mm	2.44 "	4.13 in	1	Conformal Coated Enclosed
RECOM Power RAC150-24SG/OF	150 W	125 W	PFC Universal Input	70 °C	-30 °C		91 %	Chassis Mount	3000 V	24 V	ITE (Commercial)	90 VAC	264 VAC	CB CE cURus EAC	6.25 A	101.6 mm	1.18 in			2 in	4 in	1	Conformal Coated Open Frame	50.8 mm	30 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switching Power Supplies 120W 90-264Vin 12Vout 12.5A
