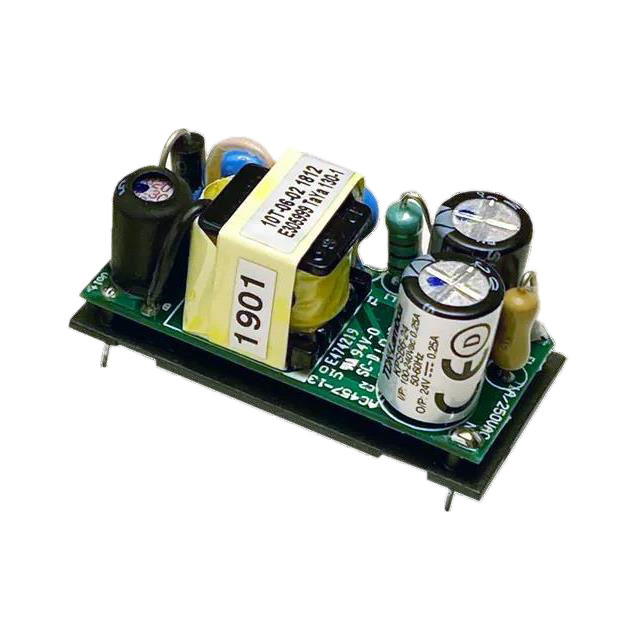

KPSB6-5
ActiveTDK-LAMBDA
AC/DC PCB MOUNT POWER SUPPLY (PSU), ITE, 1 OUTPUT, 6 W, 5 V, 1.2 A
Deep-Dive with AI
Search across all available documentation for this part.
KPSB6-5
ActiveTDK-LAMBDA
AC/DC PCB MOUNT POWER SUPPLY (PSU), ITE, 1 OUTPUT, 6 W, 5 V, 1.2 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | KPSB6-5 |
|---|---|
| Applications | Household Appliances, ITE (Commercial) |
| Approval Agency | UL, CE, CSA, FCC |
| Current - Output (Max) [Max] | 1.2 A |
| Efficiency | 78 % |
| Features | Adjustable Output, Universal Input |
| Line Regulation | 1 % |
| Load Regulation | 5 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 80 ¯C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4-DIP Module |
| Power (Watts) | 6 W |
| Size / Dimension [x] | 39.5 mm |
| Size / Dimension [x] | 1.56 in |
| Size / Dimension [y] | 19.4 mm |
| Size / Dimension [y] | 0.76 in |
| Size / Dimension [z] | 0.72 " |
| Size / Dimension [z] | 18.3 mm |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
KPSB6 Series
KPSB6-5 is a AC-DC board mount power supply. The cost effective, board mount KPSB series offers high efficiency levels in very compact footprints. Featuring an open frame or encapsulated construction, these light weight converters are Class II double insulated, allowing operation without an earth ground connection.
