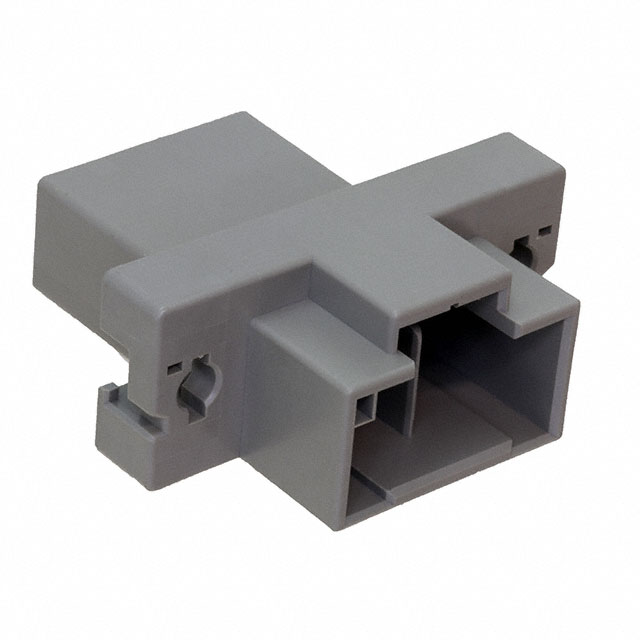

DF60R-2EP-10.16C

Active

Hirose Electric USA, Inc.

[ENERBEE ] 65A 10.16MM PITCH WIRE-TO-BOARD INTERNAL POWER SUPPLY CONNECTOR

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

[ENERBEE ] 65A 10.16MM PITCH WIRE-TO-BOARD INTERNAL POWER SUPPLY CONNECTOR

Technical Specifications

Parameters and characteristics for this part

Specification	DF60R-2EP-10.16C

Color	Gray
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Blade Pin
Fastening Type	Latch Holder
Features	Mounting Flange
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	10.16 mm
Pitch [x]	0.4 in

Part	Color	Connector Type	Features	Contact Type	Contact Termination	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Fastening Type	Pitch [x]	Pitch [x]	Mounting Type	Insulation Material	Contact Material	Contact Finish - Mating	Contact Shape	Contact Length - Post [x]	Contact Length - Post [x]	Current Rating (Amps)	Shrouding	Material Flammability Rating	Number of Positions Loaded	Termination	Voltage Rating	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Contact Finish - Post	Style	Insulation Color	Applications	Contact Length - Post	Contact Length - Post
Hirose Electric USA, Inc. DF60R-2EP-10.16C	Gray	Plug	Mounting Flange	Blade Pin	Crimp	1	105 ░C	-55 °C	2	Latch Holder	10.16 mm	0.4 in	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT) Glass Filled
Hirose Electric USA, Inc. DF60R-2P-10.16DS(26)
Hirose Electric USA, Inc. DF60R-2P-10.16DSA(45)		Header	Board Guide	Male Pin		1	105 ░C	-55 °C	2	Latch Holder			Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	Copper	Gold	Square	0.15 in	3.81 mm	Varies by Wire Gauge	Shrouded - 4 Wall	UL94 V-0	All	Solder	1000 VDC	10.16 mm	0.4 in	0.846 "	21.5 mm	Tin	Board to Board Cable
Hirose Electric USA, Inc. DF60R-3P-10.16DS(26)		Header	Board Guide	Male Pin		1	125 °C	-55 °C		Latch Lock			Through Hole Right Angle	Polybutylene Terephthalate (PBT) Glass Filled	Copper	Gold	Square				Shrouded - 4 Wall	UL94 V-0	All	Solder	1000 VDC	10.16 mm	0.4 in				Board to Board Cable	Gray	General Purpose	3.6 mm	0.142 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Rectangular Connectors - Housings Plug Gray 0.400" (10.16mm)
