Technical Specifications
Parameters and characteristics for this part
| Specification | 5100UE 0081000 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Polypropylene (PP) |
| Conductor Material | Copper, Tinned |
| Features | Rip Cord |
| Jacket (Insulation) Diameter [diameter] | 5.84 mm |
| Jacket (Insulation) Diameter [diameter] | 0.23 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC), Riser |
| Jacket (Insulation) Thickness | 0.432 mm |
| Jacket (Insulation) Thickness | 0.017 in |
| Jacket Color | Gray |
| Length | 1000 ft |
| Length | 304.8 m |
| Number of Conductors | 2 |
| Ratings | UL Style CMR |
| Usage | Sound, Security |
| Voltage | 300 V |
| Wire Gauge | 13.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1000 | $ 0.75 | |
Description
General part information
5100UE Series

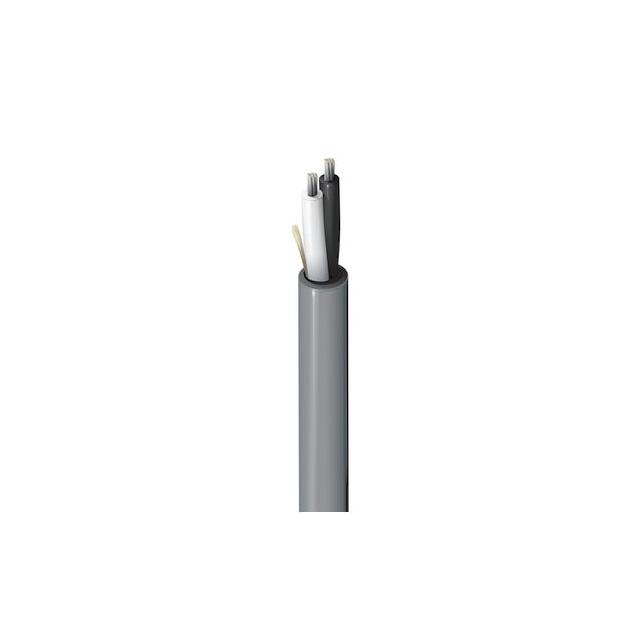

2 Conductor Multi-Conductor Cable Gray 14 AWG 1000.0' (304.8m)
