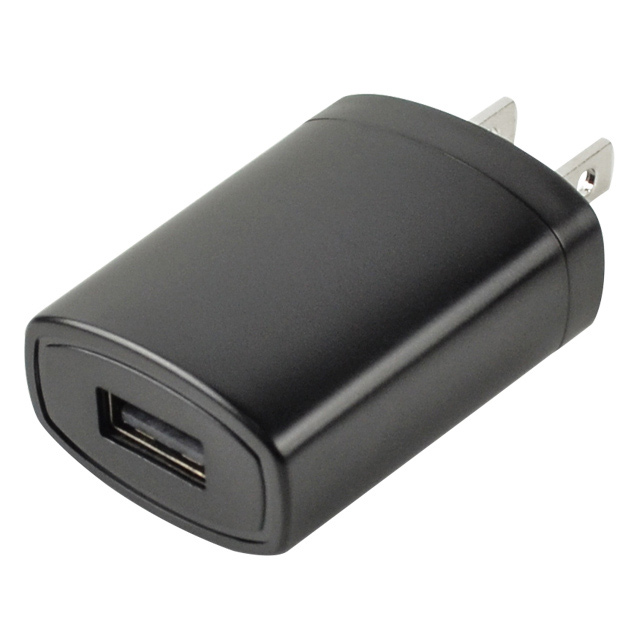

SWI5-5-N-I38

Active

CUI Inc.

AC/DC WALL MOUNT ADAPTER 5V 5W

Deep-Dive with AI

Search across all available documentation for this part.

SWI5-5-N-I38

Active

CUI Inc.

AC/DC WALL MOUNT ADAPTER 5V 5W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SWI5-5-N-I38

Applications	ITE (Commercial)
Approval Agency	FCC, CSA, UL, PSE
Current - Output (Max) [Max]	1 A
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class II)
Input Connector	NEMA 1-15P
Input Type	Fixed Blade
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Power (Watts)	5 W
Region Utilized	North America
Size / Dimension [x]	0.89 in
Size / Dimension [x]	22.6 mm
Size / Dimension [y]	1.42 in
Size / Dimension [y]	36 mm
Size / Dimension [z]	1.88 "
Size / Dimension [z]	47.7 mm
Standard Number	C22.2 No. 60950-1, 62368-1, 60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5 V
Weight	0.177 lb
Weight	80.29 g

SWI5-5 Series

Part	Applications	No Load Power Consumption [Max]	Region Utilized	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Input [Min]	Voltage - Input [Max]	Output Connector [x]	Output Connector [diameter]	Output Connector	Operating Temperature [Max]	Power (Watts)	Voltage - Output	Weight	Weight	Standard Number	Approval Agency	Input Type	Polarization	Input Connector	Form	Cord Length	Cord Length	Efficiency	Current - Output (Max) [Max]	Output Connector [z]	Output Connector [y]
CUI Inc. SWI5-5-N-P6R	ITE (Commercial)	75 mW	North America	1.42 in	1.88 "	0.89 in	47.7 mm	36 mm	22.6 mm	90 VAC	264 VAC	9.5 mm	2.5 mm 5.5 mm	Barrel Plug R/A	40 °C	5 W	5 V	0.177 lb	80.29 g	60950-1 62368-1 C22.2 No. 60950-1	CSA FCC PSE UL	Fixed Blade	Positive Center	NEMA 1-15P	Wall Mount (Class II)	1.5 m	59 in	CoC Tier 2 Level VI	1 A
CUI Inc. SWI5-5-N-MUB	ITE (Commercial)	75 mW	North America	1.42 in	1.88 "	0.89 in	47.7 mm	36 mm	22.6 mm	90 VAC	264 VAC			USB Micro	40 °C	5 W	5 V	0.177 lb	80.29 g	60950-1 62368-1 C22.2 No. 60950-1	CSA FCC PSE UL	Fixed Blade		NEMA 1-15P	Wall Mount (Class II)	1.5 m	59 in	CoC Tier 2 Level VI	1 A
CUI Inc. SWI5-5-E-I38	ITE (Commercial)	75 mW	Europe	1.42 in	2.58 "	0.89 in	65.6 mm	36 mm	22.6 mm	90 VAC	264 VAC				40 °C	5 W	5 V	0.177 lb	80.29 g	60950-1 62368-1	CB Scheme IEC	Fixed Blade		CEE 7/16	Wall Mount (Class II)			CoC Tier 2 Level VI	1 A
CUI Inc. SWI5-5-N-P6	ITE (Commercial)	75 mW	North America	1.42 in	1.88 "	0.89 in	47.7 mm	36 mm	22.6 mm	90 VAC	264 VAC	9.5 mm	2.5 mm 5.5 mm	Barrel Plug	40 °C	5 W	5 V	0.177 lb	80.29 g	60950-1 62368-1 C22.2 No. 60950-1	CSA FCC PSE UL	Fixed Blade	Positive Center	NEMA 1-15P	Wall Mount (Class II)	1.5 m	59 in	CoC Tier 2 Level VI	1 A
CUI Inc. SWI5-5-N-I38	ITE (Commercial)	75 mW	North America	1.42 in	1.88 "	0.89 in	47.7 mm	36 mm	22.6 mm	90 VAC	264 VAC				40 °C	5 W	5 V	0.177 lb	80.29 g	60950-1 62368-1 C22.2 No. 60950-1	CSA FCC PSE UL	Fixed Blade		NEMA 1-15P	Wall Mount (Class II)			CoC Tier 2 Level VI	1 A
CUI Inc. SWI5-5-N-P5R	ITE (Commercial)	75 mW	North America	1.42 in	1.88 "	0.89 in	47.7 mm	36 mm	22.6 mm	90 VAC	264 VAC	2.1 mm		Barrel Plug R/A	40 °C	5 W	5 V	0.177 lb	80.29 g	60950-1 62368-1 C22.2 No. 60950-1	CSA FCC PSE UL	Fixed Blade	Positive Center	NEMA 1-15P	Wall Mount (Class II)	1.5 m	59 in	CoC Tier 2 Level VI	1 A	9.5 mm	5.5 mm
CUI Inc. SWI5-5-N-P5	ITE (Commercial)	75 mW	North America	1.42 in	1.88 "	0.89 in	47.7 mm	36 mm	22.6 mm	90 VAC	264 VAC	9.5 mm	2.1 mm 5.5 mm	Barrel Plug	40 °C	5 W	5 V	0.177 lb	80.29 g	60950-1 62368-1 C22.2 No. 60950-1	CSA FCC PSE UL	Fixed Blade	Positive Center	NEMA 1-15P	Wall Mount (Class II)	1.5 m	59 in	CoC Tier 2 Level VI	1 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 7.01
		5	$ 6.66
		10	$ 6.48
		25	$ 6.13
		50	$ 5.78
		100	$ 5.61
		250	$ 5.26
		500	$ 4.91

Description

General part information

SWI5-5 Series

5V 5 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input

Documents

Technical documentation and resources

No documents available
