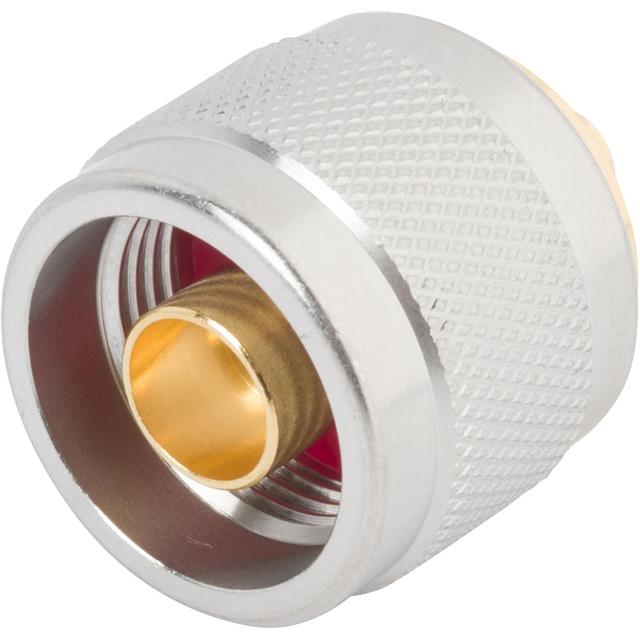

SF6511-60010

Active

Amphenol SV Microwave

CONN PN PLUG STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN PN PLUG STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	SF6511-60010

Body Material	Stainless Steel
Cable Group	0.085 in
Cable Group	RG-405
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	PN
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Solder

Part	Connector Type	Center Contact Plating	Mounting Type	Impedance	Number of Ports	Shield Termination	Dielectric Material	Contact Termination	Cable Group	Cable Group	Housing Color	Connector Style	Center Contact Material	Body Material	Mating Cycles
Amphenol SV Microwave SF6511-60010	Male Pin Plug	Gold	Free Hanging (In-Line)	50 Ohms	1	Solder	Polytetrafluoroethylene (PTFE)	Solder	0.085 in	RG-405	Silver	PN	Brass	Stainless Steel	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 33.13

General part information

PN Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder

Technical documentation and resources
