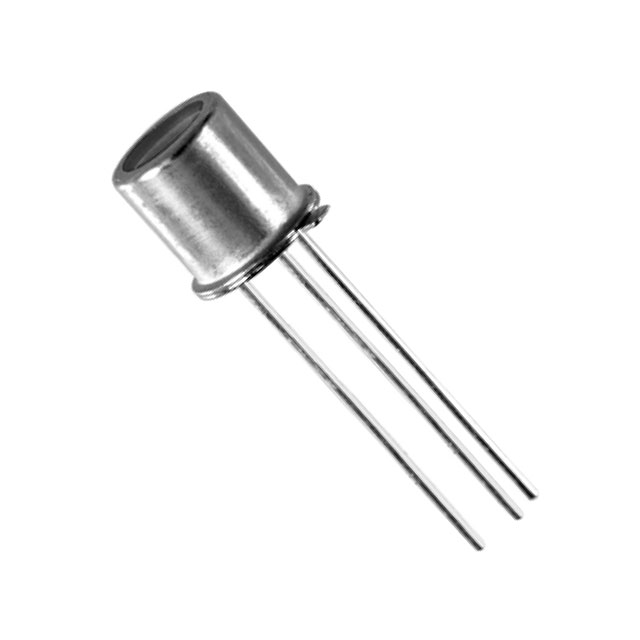

OP802WSL

Active

TT Electronics/Optek Technology

SENSOR PHOTO 890NM TOP TO206AA

Search across all available documentation for this part.

Active

TT Electronics/Optek Technology

SENSOR PHOTO 890NM TOP TO206AA

Technical Specifications

Parameters and characteristics for this part

Specification	OP802WSL

Current - Collector (Ic) (Max) [Max]	50 mA
Current - Dark (Id) (Max) [Max]	100 nA
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Orientation	Top View
Package / Case	TO-18-3 Metal Can, TO-206AA
Power - Max [Max]	250 mW
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V
Wavelength	890 nm

Part	Orientation	Voltage - Collector Emitter Breakdown (Max) [Max]	Wavelength	Mounting Type	Package / Case	Power - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Dark (Id) (Max) [Max]	Current - Collector (Ic) (Max) [Max]
TT Electronics/Optek Technology OP802WSL	Top View	30 V	890 nm	Through Hole	TO-18-3 Metal Can TO-206AA	250 mW	125 °C	-65 ░C	100 nA	50 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Phototransistors 890nm Top View TO-206AA, TO-18-3 Metal Can
