VS-180RKI80PBF

Active

Vishay General Semiconductor - Diodes Division

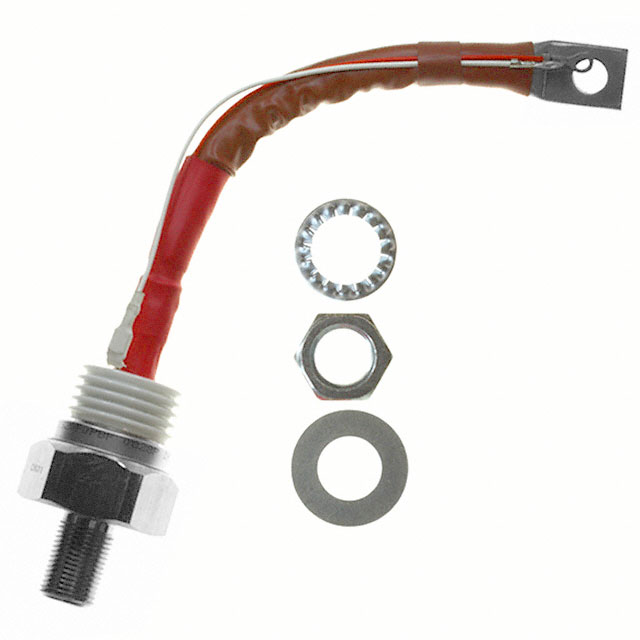

SCR 800V 285A TO209AB

Search across all available documentation for this part.

Active

Vishay General Semiconductor - Diodes Division

SCR 800V 285A TO209AB

Technical Specifications

Parameters and characteristics for this part

Specification	VS-180RKI80PBF

Current - Gate Trigger (Igt) (Max) [Max]	150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	4000 A
Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	3800 A
Current - Off State (Max) [Max]	30 mA
Current - On State (It (AV)) (Max) [Max]	180 A
Current - On State (It (RMS)) (Max) [Max]	285 A
Mounting Type	Chassis, Stud Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	TO-93-4, TO-209AB, Stud
SCR Type	Standard Recovery
Supplier Device Package	TO-209AB (TO-93)
Voltage - Gate Trigger (Vgt) (Max)	2.5 V
Voltage - Off State	800 V
Voltage - On State (Vtm) (Max) [Max]	1.35 V

Part	Current - On State (It (AV)) (Max) [Max]	SCR Type	Voltage - On State (Vtm) (Max) [Max]	Voltage - Gate Trigger (Vgt) (Max)	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Voltage - Off State	Current - Off State (Max) [Max]	Current - Gate Trigger (Igt) (Max) [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Supplier Device Package	Current - On State (It (RMS)) (Max) [Max]
Vishay General Semiconductor - Diodes Division VS-180RKI80	180 A	Standard Recovery	1.35 V	2.5 V	4000 A	3800 A	800 V	30 mA	150 mA	Stud TO-209AB TO-93-4	125 °C	-40 °C	Chassis Stud Mount	TO-209AB (TO-93)	285 A
Vishay General Semiconductor - Diodes Division VS-180RKI80PBF	180 A	Standard Recovery	1.35 V	2.5 V	4000 A	3800 A	800 V	30 mA	150 mA	Stud TO-209AB TO-93-4	125 °C	-40 °C	Chassis Stud Mount	TO-209AB (TO-93)	285 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SCR 800 V 285 A Standard Recovery Chassis, Stud Mount TO-209AB (TO-93)
