OSTNR041201

Active

On Shore Technology Inc.

3.5MM 2 PC TERM BLOCK HEADER R/A

Search across all available documentation for this part.

Active

On Shore Technology Inc.

3.5MM 2 PC TERM BLOCK HEADER R/A

Technical Specifications

Parameters and characteristics for this part

Specification	OSTNR041201

Color	Black
Contact Material	Copper
Contact Mating Finish	Tin
Contact Tail Length	0.079 in
Contact Tail Length	2 mm
Current - UL	8 A
Features	Mating Flange
Header Orientation	90°, Right Angle
Housing Material	Liquid Crystal Polymer (LCP)
Insulation Height	0.425 in
Insulation Height	10.8 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	2
Number of Positions	4
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Positions Per Level	2
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	150 V

Part	Termination Style	Color	Insulation Height	Insulation Height	Housing Material	Features	Contact Tail Length	Contact Tail Length	Type	Positions Per Level	Operating Temperature [Min]	Operating Temperature [Max]	Contact Mating Finish	Number of Positions	Number of Levels	Header Orientation	Material Flammability Rating	Voltage - UL	Mounting Type	Current - UL	Pitch [x]	Pitch [x]	Contact Material
On Shore Technology Inc. OSTNR041200	Solder	Black	11.6 mm	0.457 in	Liquid Crystal Polymer (LCP)	Mating Flange	0.079 in	2 mm	Header Male Pins Shrouded (4 Side)	2	-40 °C	115 °C	Tin	4	2	Vertical	UL94 V-0	300 V	Through Hole	8 A	3.5 mm	0.138 in	Copper
On Shore Technology Inc. OSTNR041100	Solder	Black	11.6 mm	0.457 in	Liquid Crystal Polymer (LCP)		0.079 in	2 mm	Header Male Pins Shrouded (4 Side)	2	-40 °C	115 °C	Tin	4	2	Vertical	UL94 V-0	300 V	Through Hole	8 A	3.5 mm	0.138 in	Copper
On Shore Technology Inc. OSTNR041201	Solder	Black	10.8 mm	0.425 in	Liquid Crystal Polymer (LCP)	Mating Flange	0.079 in	2 mm	Header Male Pins Shrouded (4 Side)	2	-40 °C	115 °C	Tin	4	2	90° Right Angle	UL94 V-0	150 V	Through Hole	8 A	3.5 mm	0.138 in	Copper
On Shore Technology Inc. OSTNR041101	Solder	Black	10.8 mm	0.425 in	Liquid Crystal Polymer (LCP)		0.079 in	2 mm	Header Male Pins Shrouded (4 Side)	2	-40 °C	115 °C	Tin	4	2	90° Right Angle	UL94 V-0	150 V	Through Hole	8 A	3.5 mm	0.138 in	Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

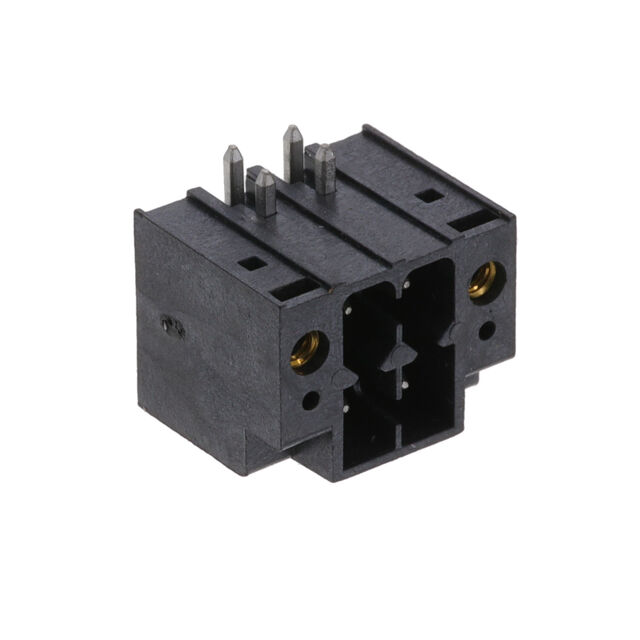

4 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole
