ActiveEDAC Inc.

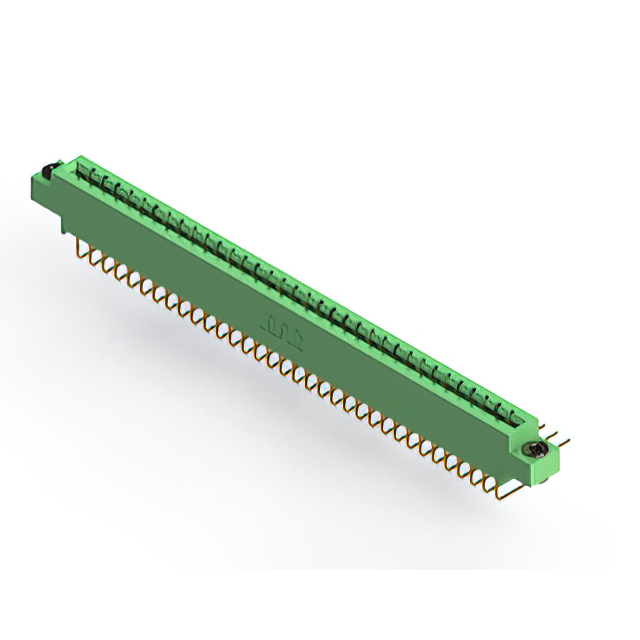

3.96MM RIGHT-ANGLE 68P -40℃~+125℃ PUSH-PULL,P=3.96MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
833-068-558-803
ActiveEDAC Inc.
3.96MM RIGHT-ANGLE 68P -40℃~+125℃ PUSH-PULL,P=3.96MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 833-068-558-803 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, Floating Bobbin |
| Flange Feature [diameter] | 2.95 mm |
| Flange Feature [diameter] | 0.116 in |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 68 |
| Number of Positions/Bay/Row [custom] | 34 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
833-068 Series
...
| Part | Material - Insulation | Mounting Type | Color | Contact Material | Flange Feature | Termination | Contact Type | Number of Positions/Bay/Row [custom] | Termination Rows | Card Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions | Gender | Read Out | Pitch [x] | Pitch [x] | Contact Finish | Features | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Diallyl Phthalate (DAP) | Through Hole | Green | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | Wire Wrap | Cantilever | 34 | 2 | Non Specified - Dual Edge | 125 °C | -40 °C | 2 | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 68 | Female | Dual | 0.156 in | 3.96 mm | Gold | |||||
EDAC Inc. | Diallyl Phthalate (DAP) | Through Hole | Green | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | Solder Eyelet(s) | Cantilever | 34 | 2 | Non Specified - Dual Edge | 125 °C | -40 °C | 2 | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 68 | Female | Dual | 0.156 in | 3.96 mm | Gold | |||||
EDAC Inc. | Diallyl Phthalate (DAP) | Board Edge Straddle Mount | Green | Copper Alloy | M3 Threaded Insert Top Mount Opening | Solder | Cantilever | 34 | 2 | Non Specified - Dual Edge | 125 °C | -40 °C | 2 | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 68 | Female | Dual | 0.156 in | 3.96 mm | Gold | Card Extender | ||||
EDAC Inc. | Diallyl Phthalate (DAP) | Through Hole | Green | Copper Alloy | Floating Bobbin Flush Mount | Solder | Cantilever | 34 | 2 | Non Specified - Dual Edge | 125 °C | -40 °C | 2 | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 68 | Female | Dual | 0.156 in | 3.96 mm | Gold | 0.116 in | 2.95 mm | |||
EDAC Inc. | Diallyl Phthalate (DAP) | Through Hole | Green | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | Wire Wrap | Cantilever | 34 | 2 | Non Specified - Dual Edge | 125 °C | -40 °C | 2 | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 68 | Female | Dual | 0.156 in | 3.96 mm | Gold | |||||
EDAC Inc. | Diallyl Phthalate (DAP) | Board Edge Straddle Mount | Green | Copper Alloy | Solder | Cantilever | 34 | 2 | Non Specified - Dual Edge | 125 °C | -40 °C | 2 | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 68 | Female | Dual | 0.156 in | 3.96 mm | Gold | Card Extender | 3.25 mm | 0.128 in | |||
EDAC Inc. | Diallyl Phthalate (DAP) | Through Hole | Green | Copper Alloy | Flush Mount Top Opening Unthreaded | Solder | Cantilever | 34 | 2 | Non Specified - Dual Edge | 125 °C | -40 °C | 2 | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 68 | Female | Dual | 0.156 in | 3.96 mm | Gold | 0.156 in | 3.96 mm | |||
EDAC Inc. | Diallyl Phthalate (DAP) | Through Hole | Green | Copper Alloy | Floating Bobbin Flush Mount | Wire Wrap | Cantilever | 34 | 2 | Non Specified - Dual Edge | 125 °C | -40 °C | 2 | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 68 | Female | Dual | 0.156 in | 3.96 mm | Gold | 0.116 in | 2.95 mm | |||
EDAC Inc. | Diallyl Phthalate (DAP) | Through Hole | Green | Copper Alloy | Wire Wrap | Cantilever | 34 | 2 | Non Specified - Dual Edge | 125 °C | -40 °C | 2 | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 68 | Female | Dual | 0.156 in | 3.96 mm | Gold | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Diallyl Phthalate (DAP) | Through Hole Right Angle | Green | Copper Alloy | Floating Bobbin Top Mount Opening | Solder | Cantilever | 34 | 2 | Non Specified - Dual Edge | 125 °C | -40 °C | 2 | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 68 | Female | Dual | 0.156 in | 3.96 mm | Gold | 0.116 in | 2.95 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
833-068 Series
68 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
