28640806RP2

Active

MH Connectors

28640806RP2 ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

MH Connectors

28640806RP2 ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	28640806RP2

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.177 in
Insulation Height	4.5 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Termination	Solder

Part	Number of Rows	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Fastening Type	Termination	Number of Positions	Insulation Color	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Material Flammability Rating	Contact Type	Connector Type	Pitch - Mating [x]	Pitch - Mating [x]	Contact Shape	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material
MH Connectors 28640806RP2	2	0.177 in	4.5 mm	Flash	Push-Pull	Solder	8	Black	Gold	0.079 in	2 mm	Surface Mount	Nylon 6T Polyamide (PA6T)	-40 °C	105 ░C	All	UL94 V-0	Female Socket	Receptacle	0.079 in	2 mm	Square	Tin	2.54 µm	100 µin	Phosphor Bronze

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	500	$ 1.10
Newark	Each	500	$ 1.23
		1000	$ 1.14

General part information

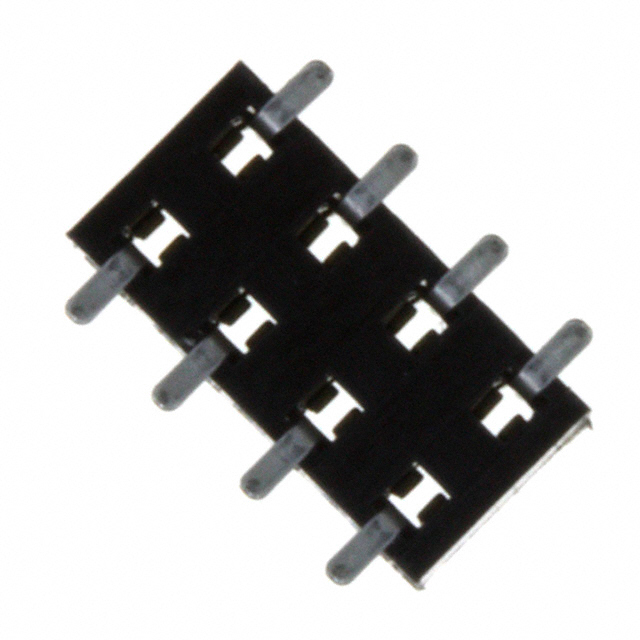

8 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold
