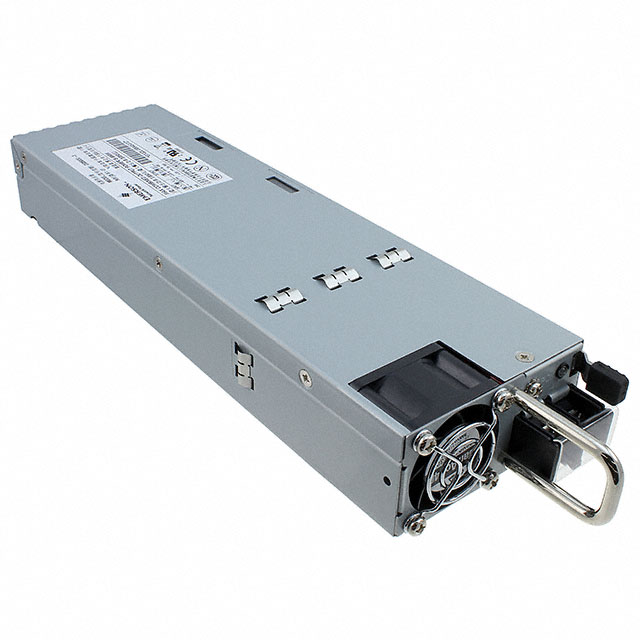

DS850DC-3

Active

ARTESYN / Advanced Energy

DC/DC POWER SUPPLY SINGLE-OUT 12V 70A 850W 30-PIN

Search across all available documentation for this part.

Active

ARTESYN / Advanced Energy

DC/DC POWER SUPPLY SINGLE-OUT 12V 70A 850W 30-PIN

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Number of Outputs	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Current - Output 1	Type	Mounting Type	Voltage - Output 1	Features	Approval Agency	Efficiency	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]
ARTESYN / Advanced Energy DS850-5	-10 °C	50 °C	1	90 VAC	264 VAC	ITE (Commercial)	1.57 "	81.3 mm	279.4 mm	39.9 mm	11 in	3.2 in	35 A	Front End	Rack Mount	24 V	Hot Swappable I2C Interface Load Sharing PFC Remote Sense Standby Output Universal Input	CB CE
ARTESYN / Advanced Energy DS850-9	-10 °C	50 °C	1	90 VAC	264 VAC	ITE (Commercial)	1.57 "	81.3 mm	279.4 mm	39.9 mm	11 in	3.2 in	17.5 A	Front End	Rack Mount	48 V	Hot Swappable I2C Interface Load Sharing PFC Remote Sense Standby Output Universal Input	CB CE
ARTESYN / Advanced Energy DS850DC-3			1			ITE (Commercial)	1.57 "	81.3 mm	279.4 mm	39.9 mm	11 in	3.2 in		Front End	Rack Mount	12 V			80 %	-72 V	50 °C	-5 °C	70 A	-39 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Front End DC DC Converter 1 Output 12V 70A -72V Input
