T3D03120M4

Obsolete

HELLERMANNTYTON

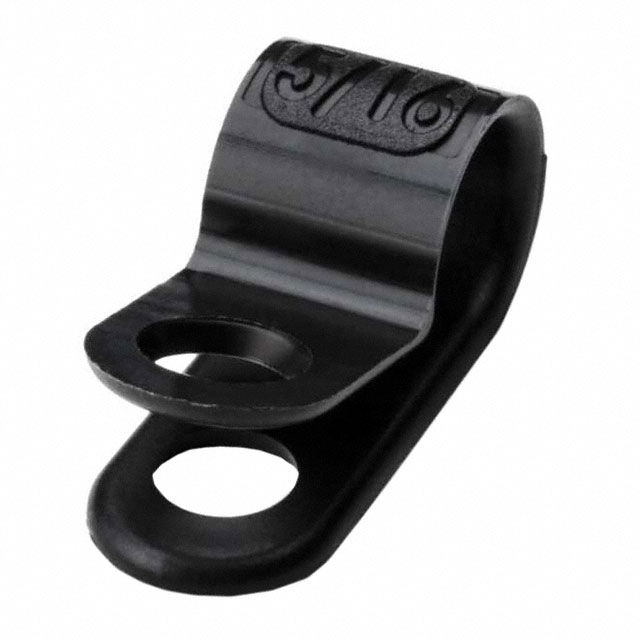

CBL CLAMP P-TYPE BLACK FASTENER

Search across all available documentation for this part.

Obsolete

HELLERMANNTYTON

CBL CLAMP P-TYPE BLACK FASTENER

Technical Specifications

Parameters and characteristics for this part

Specification	T3D03120M4

Bundle Center to Mounting Center	12.57 mm
Bundle Center to Mounting Center	0.495 in
Color	Black
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Material Thickness	0.05 in
Material Thickness	1.27 mm
Mounting Type	Fastener
Panel Hole Size	5.16 mm
Panel Hole Size	0.203 in
Type	Clamp, P-Type
Width [x]	0.375 in
Width [x]	9.53 mm

Part	Color	Width [x]	Width [x]	Material Flammability Rating	Panel Hole Size	Panel Hole Size	Bundle Center to Mounting Center	Bundle Center to Mounting Center	Material	Material Thickness	Material Thickness	Mounting Type	Type
HELLERMANNTYTON T3D03120M4	Black	0.375 in	9.53 mm	UL94 V-2	5.16 mm	0.203 in	12.57 mm	0.495 in	Polyamide (PA66) Nylon 6/6	0.05 in	1.27 mm	Fastener	Clamp P-Type

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cable Clamp, P-Type Black Fastener 0.313" (7.95mm)

Technical documentation and resources
