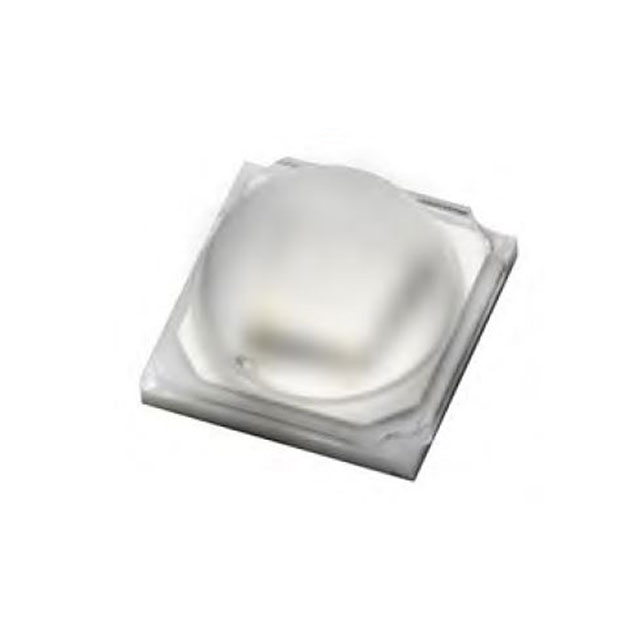

EAUVA35352BC5
ActiveEverlight Electronics Co Ltd
EMITTER UV 368NM 700MA SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EAUVA35352BC5
ActiveEverlight Electronics Co Ltd
EMITTER UV 368NM 700MA SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EAUVA35352BC5 |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 700 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 110 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | 2-SMD, No Lead Exposed Pad |
| Type | Ultraviolet (UV) |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.7 V |
| Wavelength | 368 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
EAUVA35352 Series
Ultraviolet (UV) Emitter 368nm 3.7V 700mA 120° 2-SMD, No Lead Exposed Pad
Documents
Technical documentation and resources
