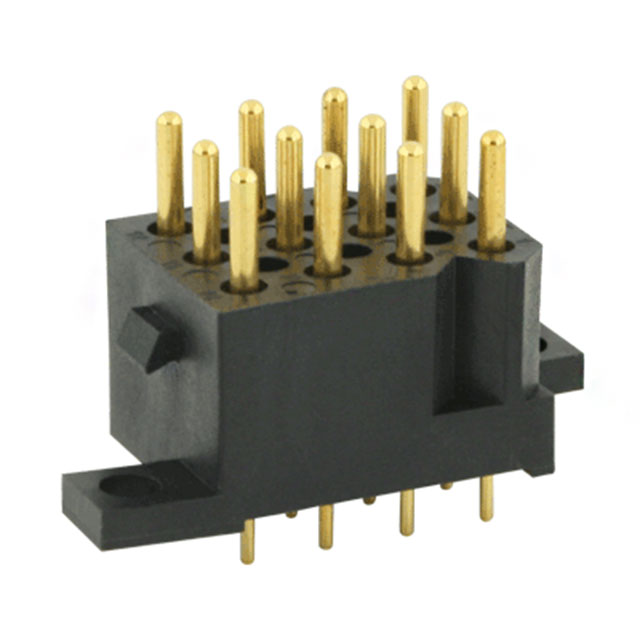

SMS12SE4K9

Active

Souriau-Sunbank by Eaton

CONN HEADER VERT 12POS 5.08MM

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONN HEADER VERT 12POS 5.08MM

Technical Specifications

Parameters and characteristics for this part

Specification	SMS12SE4K9

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	16 Áin
Contact Finish Thickness - Mating	0.41 Ám
Contact Length - Mating	0.28 in
Contact Length - Mating	7.11 mm
Contact Length - Post	3.5 mm
Contact Length - Post	0.138 in
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	5 A
Fastening Type	Locking Ramp
Features	Mounting Flange
Ingress Protection	IP40
Insulation Color	Black
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	12
Number of Positions Loaded	All
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	23.8 mm
Overall Contact Length	0.937 in
Pitch - Mating	5.08 mm
Pitch - Mating	0.2 in
Row Spacing - Mating [x]	5.08 mm
Row Spacing - Mating [x]	0.2 "
Shrouding	Unshrouded
Style	Board to Cable/Wire
Termination	Solder

Part	Overall Contact Length	Overall Contact Length	Contact Type	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Ingress Protection	Number of Positions	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Features	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Termination	Style	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Material Flammability Rating	Number of Positions Loaded	Mounting Type	Fastening Type	Insulation Material	Contact Material	Shrouding	Contact Shape	Contact Finish - Mating	Contact Length - Post [x]	Contact Length - Post [x]
Souriau-Sunbank by Eaton SMS12SE4K9	23.8 mm	0.937 in	Male Pin	Black	16 Áin	0.41 Ám	IP40	12	Tin	5.08 mm	0.2 in	Mounting Flange	-55 °C	125 °C	Header	3.5 mm	0.138 in	0.28 in	7.11 mm	5 A	Solder	Board to Cable/Wire	5.08 mm	0.2 "	UL94 V-0	All	Through Hole	Locking Ramp	Polyester Glass Filled	Copper Alloy	Unshrouded	Circular	Gold
Souriau-Sunbank by Eaton SMS12SE3K9			Female Socket	Black	16 Áin	0.41 Ám	IP40	12	Tin	5.08 mm	0.2 in	Mounting Flange	-55 °C	105 ░C	Receptacle					5 A	Solder	Board to Board Cable	5.08 mm	0.2 "	UL94 V-0	All	Through Hole	Locking Ramp		Copper Alloy		Circular	Gold	0.134 in	3.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 12 position 0.200" (5.08mm)
