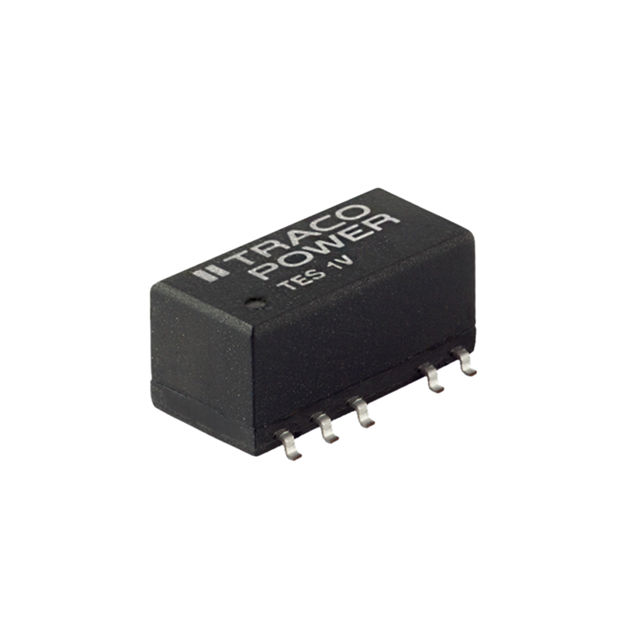

TES 1-2423V

Active

Traco Power

DC DC CONVERTER +/-15V 1W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TES 1-2423V

Active

Traco Power

DC DC CONVERTER +/-15V 1W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TES 1-2423V

Applications	ITE (Commercial)
Current - Output (Max)	34 mA
Efficiency	79 %
Features	SCP
Mounting Type	Surface Mount
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	10 Leads
Package / Case	12-SMD Module
Size / Dimension [x]	0.64 in
Size / Dimension [x]	16.3 mm
Size / Dimension [y]	0.31 "
Size / Dimension [y]	8 mm
Size / Dimension [z]	8 mm
Size / Dimension [z]	0.31 in
Type	Isolated Module
Voltage - Input (Max) [Max]	26.4 V
Voltage - Input (Min) [Min]	21.6 V
Voltage - Isolation	3000 V
Voltage - Output 1	15 V
Voltage - Output 2	-15 V

TES 1 Series

Part	Mounting Type	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Type	Applications	Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Voltage - Isolation	Features	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Voltage - Output 1	Package / Case	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Power (Watts)
Traco Power TES 1-0511	Surface Mount	1	-40 °C	90 °C	78 %	Isolated Module	ITE (Commercial)	4.5 V	7 mm	0.31 "	0.28 "	13.7 mm	8 mm	0.54 in	8-SMD Module 5 Leads	1.5 kV	SCP	200 mA	5.5 V	5 V
Traco Power TES 1-1213V	Surface Mount	1	-40 °C	85 °C	81 %	Isolated Module	ITE (Commercial)	10.8 V	8 mm	0.31 "	0.31 in	16.3 mm	8 mm	0.64 in	12-SMD Module	3000 V	SCP	67 mA	13.2 V	15 V	10 Leads
Traco Power TES 1-1221V	Surface Mount	2	-40 °C	85 °C	76 %	Isolated Module	ITE (Commercial)	10.8 V	8 mm	0.31 "	0.31 in	16.3 mm	8 mm	0.64 in	12-SMD Module	3000 V	SCP		13.2 V	5 V	10 Leads	-5 V	100 mA	100 mA
Traco Power TES 1-0521	Surface Mount	2	-40 °C	90 °C	74 %	Isolated Module	ITE (Commercial)	4.5 V	7 mm	0.31 "	0.28 "	13.7 mm	8 mm	0.54 in	8-SMD Module 5 Leads	1.5 kV	SCP		5.5 V	5 V		-5 V	100 mA	100 mA
Traco Power TES 1-0521V	Surface Mount	2	-40 °C	85 °C	75 %	Isolated Module	ITE (Commercial)	4.5 V	8 mm	0.31 "	0.31 in	16.3 mm	8 mm	0.64 in	12-SMD Module	3000 V	SCP		5.5 V	5 V	10 Leads	-5 V	100 mA	100 mA
Traco Power TES 1-1213	Surface Mount	1	-40 °C	90 °C	80 %	Isolated Module	ITE (Commercial)	10.8 V	7 mm	0.31 "	0.28 "	13.7 mm	8 mm	0.54 in	8-SMD Module 5 Leads	1.5 kV	SCP	65 mA	13.2 V	15 V					975 mW
Traco Power TES 1-1212V	Surface Mount	1	-40 °C	85 °C	80 %	Isolated Module	ITE (Commercial)	10.8 V	8 mm	0.31 "	0.31 in	16.3 mm	8 mm	0.64 in	12-SMD Module	3000 V	SCP	84 mA	13.2 V	12 V	10 Leads
Traco Power TES 1-2423V	Surface Mount	2	-40 °C	85 °C	79 %	Isolated Module	ITE (Commercial)	21.6 V	8 mm	0.31 "	0.31 in	16.3 mm	8 mm	0.64 in	12-SMD Module	3000 V	SCP		26.4 V	15 V	10 Leads	-15 V		34 mA
Traco Power TES 1-0510V	Surface Mount	1	-40 °C	85 °C	72 %	Isolated Module	ITE (Commercial)	4.5 V	8 mm	0.31 "	0.31 in	16.3 mm	8 mm	0.64 in	12-SMD Module	3000 V	SCP	260 mA	5.5 V	3.3 V	10 Leads				858 mW
Traco Power TES 1-2421V	Surface Mount	2	-40 °C	85 °C	73 %	Isolated Module	ITE (Commercial)	21.6 V	8 mm	0.31 "	0.31 in	16.3 mm	8 mm	0.64 in	12-SMD Module	3000 V	SCP		26.4 V	5 V	10 Leads	-5 V	100 mA	100 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 12.00
		10	$ 10.84
		25	$ 10.48
		50	$ 10.22
		100	$ 9.96
		250	$ 9.63
		500	$ 9.39

Description

General part information

TES 1 Series

Isolated Module DC DC Converter 2 Output 15V -15V 34mA, 34mA 21.6V - 26.4V Input
