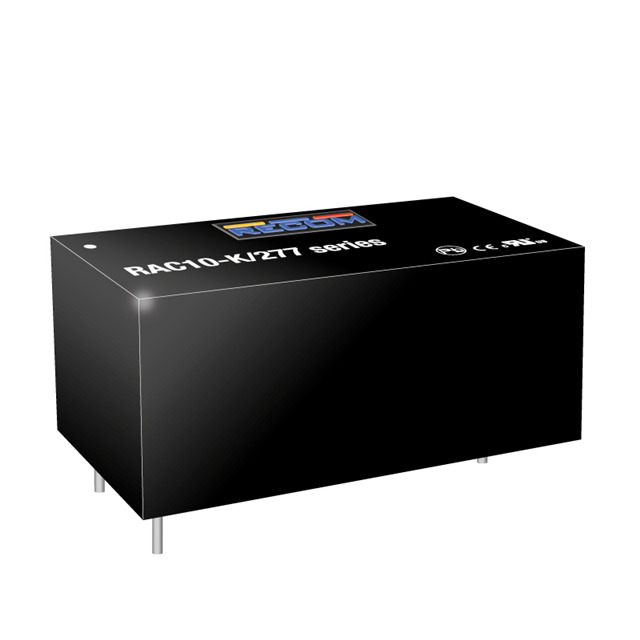

RAC10-18SK/277

Active

RECOM Power

AC/DC PCB MOUNT POWER SUPPLY (PSU), ITE & HOUSEHOLD, 1 OUTPUT, 10 W, 18 V, 560 MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

RAC10-18SK/277

Active

RECOM Power

AC/DC PCB MOUNT POWER SUPPLY (PSU), ITE & HOUSEHOLD, 1 OUTPUT, 10 W, 18 V, 560 MA

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RAC10-18SK/277

Applications	Household Appliances, ITE (Commercial)
Approval Agency	cURus, CE, EAC, CB
Current - Output (Max) [Max]	560 mA
Efficiency	85 %
Line Regulation	Ý0.5%
Load Regulation	Ý1%
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	80 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	4 Lead
Package / Case	5-DIP Module
Power (Watts)	10 W
Size / Dimension [x]	2.07 "
Size / Dimension [x]	52.5 mm
Size / Dimension [y]	27.4 mm
Size / Dimension [y]	1.08 in
Size / Dimension [z]	23 mm
Size / Dimension [z]	0.91 in
Type	Enclosed
Voltage - Input [Max]	305 VAC, 430 VDC
Voltage - Input [Min]	120 VDC, 85 VAC
Voltage - Output 1	18 V

RAC10-K/277 Series

AC/DC Power Modules 10W 85-305Vin +/-12Vout 420mA

Part	Approval Agency	Current - Output (Max) [Max]	Efficiency	Mounting Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Voltage - Input [Min]	Voltage - Input [Max]	Package / Case	Line Regulation	Number of Outputs	Voltage - Output 1	Power (Watts)	Features	Load Regulation	Type	Load Regulation	Size / Dimension [y]	Size / Dimension [z]	Package / Case	Line Regulation	Weight	Weight	Standard Number
RECOM Power RAC10-12SK/277	CE cURus	840 mA	84 %	Through Hole	0.93 in	2.07 "	23.5 mm	27.4 mm	52.5 mm	1.08 in	-40 °C	80 ¯C	Household Appliances ITE (Commercial)	80 VAC	305 VAC	4-DIP Module	0.5 %	1	12 V	10 W	Universal Input	1 %	Enclosed
RECOM Power RAC10-15DK/277	CE cURus	340 mA	83 %	Through Hole	0.93 in	2.07 "	23.5 mm	27.4 mm	52.5 mm	1.08 in	-40 °C	80 ¯C	Household Appliances ITE (Commercial)	80 VAC	305 VAC	5-DIP Module	0.5 %	2	15 V	10 W	Universal Input	1 %	Enclosed
RECOM Power RAC10-18SK/277	CB CE cURus EAC	560 mA	85 %	Through Hole	0.91 in	2.07 "			52.5 mm	1.08 in	-40 °C	80 ¯C	Household Appliances ITE (Commercial)	85 VAC 120 VDC	305 VAC 430 VDC	5-DIP Module		1	18 V	10 W			Enclosed	Ý1%	27.4 mm	23 mm	4 Lead	Ý0.5%
RECOM Power RAC10-24SK/277	CE cURus	420 mA	84 %	Through Hole	0.93 in	2.07 "	23.5 mm	27.4 mm	52.5 mm	1.08 in	-40 °C	80 ¯C	Household Appliances ITE (Commercial)	80 VAC	305 VAC	4-DIP Module	0.5 %	1	24 V	10 W	Universal Input	1 %	Enclosed
RECOM Power RAC10-12SB	CE cULus	833 mA	76 %	Through Hole	0.94 in	2.06 in	23.8 mm	27.2 mm	52.3 mm	1.07 in	-25 °C	70 °C	ITE (Commercial)	90 VAC	264 VAC	4-DIP Module	0.3 %	1	12 V	10 W	SCP	0.5 %	Enclosed						0.119 lb	53.98 g
RECOM Power RAC10-3.3SK/277	CE cURus	2.5 A	79 %	Through Hole	0.93 in	2.07 "	23.5 mm	27.4 mm	52.5 mm	1.08 in	-40 °C	80 ¯C	Household Appliances ITE (Commercial)	80 VAC	305 VAC	4-DIP Module	0.5 %	1	3.3 V	8 W	Universal Input	1.5 %	Enclosed
RECOM Power RAC10-15SC/277	CE cULus	670 mA	78 %	Through Hole	0.93 in	2.07 "	23.5 mm	27.4 mm	52.5 mm	1.08 in	-20 °C	70 °C	ITE (Commercial)	80 VAC	305 VAC	4-DIP Module	0.3 %	1	15 V	10 W	Universal Input	0.5 %	Enclosed						0.137 lb	62.14 g	60950-1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 13.04
		5	$ 12.86
		10	$ 12.67
		25	$ 11.93
		50	$ 11.55
		100	$ 11.18
		250	$ 10.81
		500	$ 10.44
Newark	Each	1	$ 17.49
		50	$ 15.87
		100	$ 14.54
		250	$ 13.51
		500	$ 12.62
Sager	N/A	1	$ 12.28
		5	$ 11.52
		10	$ 11.01
		25	$ 10.53
		50	$ 10.10
		100	$ 9.45
		250	$ 8.99

Description

General part information

RAC10-K/277 Series

AC/DC Power Modules 10W 85-305Vin +/-12Vout 420mA

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet

Document
