CWR-170-50-0003

Active

CW Industries

CONN EDGE DUAL FMALE 50POS .100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CWR-170-50-0003

Active

CW Industries

CONN EDGE DUAL FMALE 50POS .100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CWR-170-50-0003

Card Thickness [Max]	1.78 mm, 0.07 "
Card Thickness [Min]	0.81 mm, 0.032 "
Card Type	Non Specified - Dual Edge
Color	Blue
Contact Finish	Tin-Lead
Contact Finish Thickness	2.54 µm
Contact Finish Thickness	100 µin
Contact Material	Phosphor Bronze
Contact Type	Cantilever
Gender	Female
Material - Insulation	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Number of Positions	50
Number of Positions/Bay/Row [custom]	25
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	IDC

CWR-170 Series

Part	Contact Finish	Contact Material	Card Thickness [Min]	Card Thickness [Max]	Material - Insulation	Number of Rows	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Color	Number of Positions	Pitch [x]	Pitch [x]	Card Type	Contact Type	Gender	Read Out	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]
CW Industries CWR-170-34-0203	Tin	Phosphor Bronze	0.032 " 0.81 mm	0.07 " 1.78 mm	Thermoplastic	2	IDC	-55 °C	125 °C	Blue	34	2.54 mm	0.1 in	Non Specified - Dual Edge	Cantilever	Female	Dual	2.54 µm	100 µin	Free Hanging (In-Line)
CW Industries CWR-170-26-0000	Gold	Phosphor Bronze	0.032 " 0.81 mm	0.07 " 1.78 mm	Thermoplastic	2	IDC	-55 °C	125 °C	Blue	26	2.54 mm	0.1 in	Non Specified - Dual Edge	Cantilever	Female	Dual	0.25 Ám	10 Áin	Free Hanging (In-Line)	13
CW Industries CWR-170-40-0021	Gold	Phosphor Bronze			Thermoplastic	2	IDC	-55 °C	125 °C	Blue	40	2.54 mm	0.1 in	Non Specified - Dual Edge		Female	Dual	0.76 Ám	30 Áin	Free Hanging (In-Line)
CW Industries CWR-170-34-0021	Gold	Phosphor Bronze			Thermoplastic	2	IDC	-55 °C	125 °C	Blue	34	2.54 mm	0.1 in	Non Specified - Dual Edge		Female	Dual	0.76 Ám	30 Áin	Free Hanging (In-Line)
CW Industries CWR-170-20-0000	Gold	Phosphor Bronze	0.032 " 0.81 mm	0.07 " 1.78 mm	Thermoplastic	2	IDC	-55 °C	125 °C	Blue	20	2.54 mm	0.1 in	Non Specified - Dual Edge	Cantilever	Female	Dual	0.25 Ám	10 Áin	Free Hanging (In-Line)	10
CW Industries CWR-170-10-0003	Tin-Lead	Phosphor Bronze	0.032 " 0.81 mm	0.07 " 1.78 mm	Thermoplastic	2	IDC	-55 °C	125 °C	Blue	10	2.54 mm	0.1 in	Non Specified - Dual Edge	Cantilever	Female	Dual	2.54 µm	100 µin	Free Hanging (In-Line)	5
CW Industries CWR-170-26-0021
CW Industries CWR-170-26-0003	Tin-Lead	Phosphor Bronze	0.032 " 0.81 mm	0.07 " 1.78 mm	Thermoplastic	2	IDC	-55 °C	125 °C	Blue	26	2.54 mm	0.1 in	Non Specified - Dual Edge	Cantilever	Female	Dual	2.54 µm	100 µin	Free Hanging (In-Line)	13
CW Industries CWR-170-40-0203	Tin	Phosphor Bronze	0.032 " 0.81 mm	0.07 " 1.78 mm	Thermoplastic	2	IDC	-55 °C	125 °C	Blue	40	2.54 mm	0.1 in	Non Specified - Dual Edge	Cantilever	Female	Dual	2.54 µm	100 µin	Free Hanging (In-Line)		20	20	20
CW Industries CWR-170-50-0003	Tin-Lead	Phosphor Bronze	0.032 " 0.81 mm	0.07 " 1.78 mm	Thermoplastic	2	IDC	-55 °C	125 °C	Blue	50	2.54 mm	0.1 in	Non Specified - Dual Edge	Cantilever	Female	Dual	2.54 µm	100 µin	Free Hanging (In-Line)	25

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CWR-170 Series

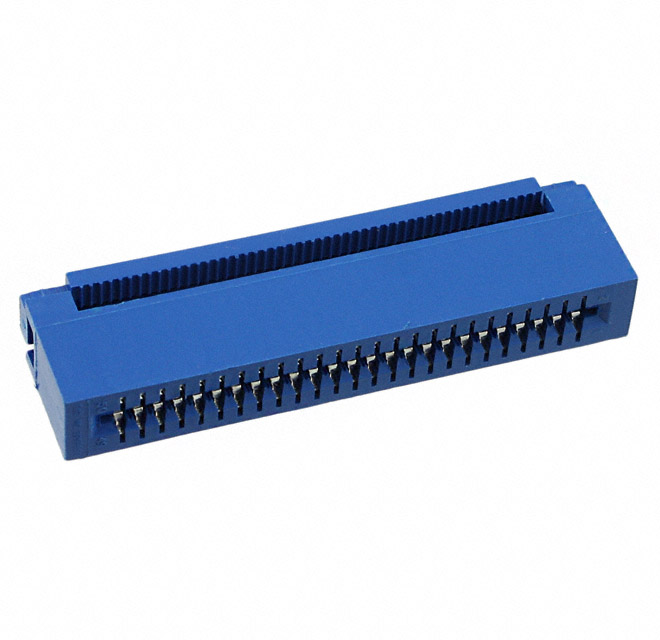

50 Position Female Connector Non Specified - Dual Edge Tin-Lead 0.100" (2.54mm) Blue
