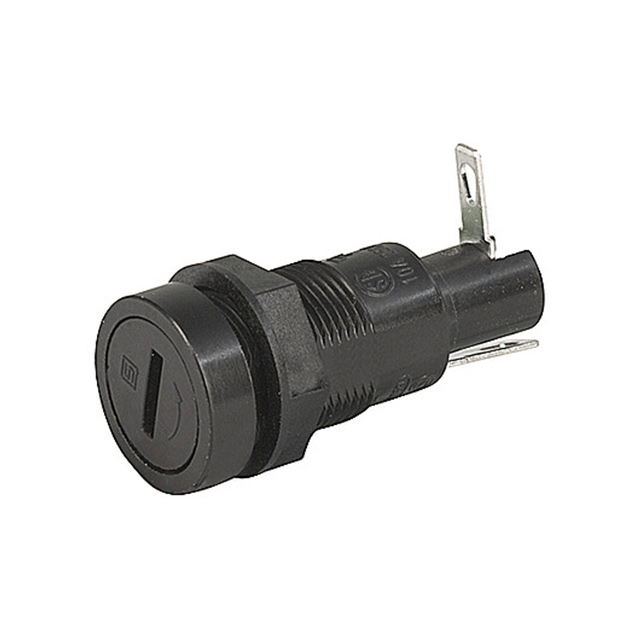

0031.1383

Active

SCHURTER Inc.

FUSE HOLDER; 10A; ON PANEL; BLACK; FIO; 250VAC; UL94V-0; -40÷85°C

Search across all available documentation for this part.

Active

SCHURTER Inc.

FUSE HOLDER; 10A; ON PANEL; BLACK; FIO; 250VAC; UL94V-0; -40÷85°C

Technical Specifications

Parameters and characteristics for this part

Specification	0031.1383

Contact Finish	Tin
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
For Use With/Related Products [x]	5 mm
For Use With/Related Products [y]	20 mm
Fuse Size [diameter]	5 mm
Fuse Size [diameter]	0.197 in
Fuse Size [x]	0.787 in
Fuse Size [x]	20 mm
Fuse Type	Cartridge
Fuseholder Type	Holder
Number of Circuits	1
Termination Style	Solder Lug
Voltage	250 V

Part	Fuse Size [x]	Fuse Size [diameter]	Fuse Size [diameter]	Fuse Size [x]	Number of Circuits	Contact Finish	Current Rating (Amps)	For Use With/Related Products [y]	For Use With/Related Products [x]	Voltage	Fuse Type	Contact Material	Termination Style	Fuseholder Type
SCHURTER Inc. 0031.1383	0.787 in	5 mm	0.197 in	20 mm	1	Tin	10 A	20 mm	5 mm	250 V	Cartridge	Copper Alloy	Solder Lug	Holder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fuse Holder 10 A 250V 1 Circuit Cartridge Panel Mount
