5219831F
ActiveDIALIGHT

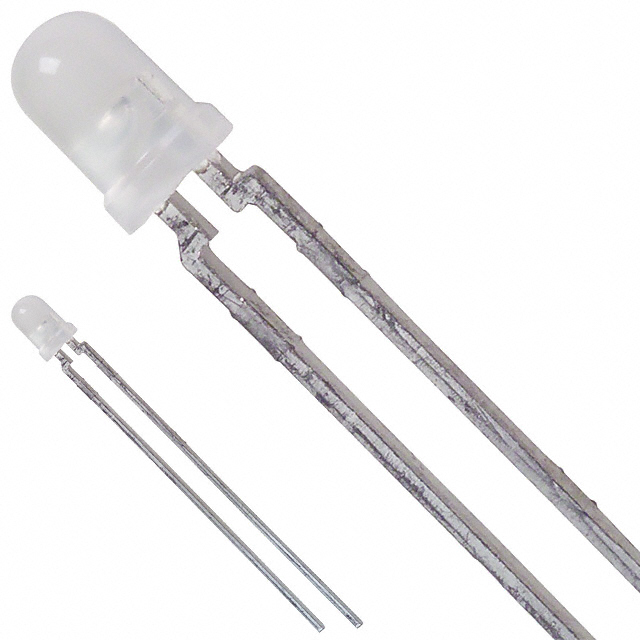

LED BLUE DIFFUSED 3MM T/H
Deep-Dive with AI
Search across all available documentation for this part.
5219831F
ActiveDIALIGHT
LED BLUE DIFFUSED 3MM T/H
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5219831F |
|---|---|
| Color | Blue |
| Configuration | Standard |
| Current - Test | 10 mA |
| Height (Max) [Max] [z] | 6.1 mm |
| Lens Color | White |
| Lens Size [diameter] | 2.8 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 13.15 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | 3 mm |
| Viewing Angle | 70 ° |
| Voltage - Forward (Vf) (Typ) | 3.5 V |
| Wavelength - Dominant | 465 nm |
| Wavelength - Peak | 428 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.44 | |
| 10 | $ 2.31 | |||
| 100 | $ 1.73 | |||
| 500 | $ 1.50 | |||
| 1000 | $ 1.43 | |||
| 2000 | $ 1.37 | |||
| 5000 | $ 1.31 | |||
Description
General part information
5219831 Series
Blue 465nm LED Indication - Discrete 3.5V Radial
Documents
Technical documentation and resources
No documents available
