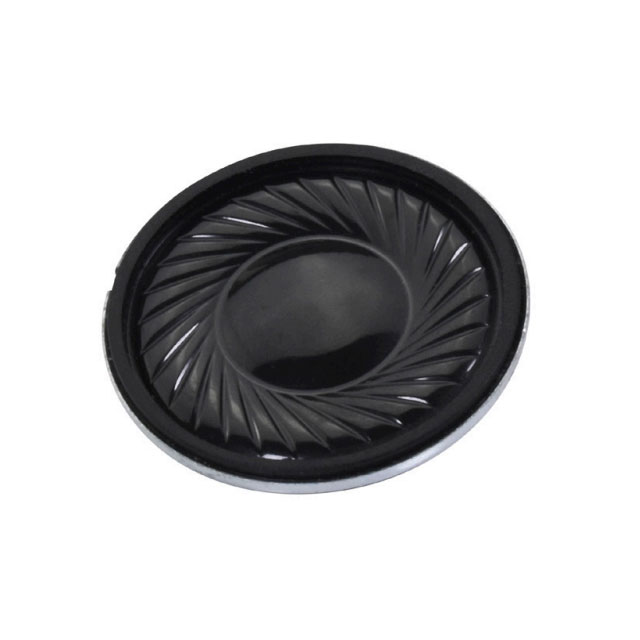

CMS-3060-128SP-67

Active

CUI Devices

SPEAKER 8OHM 1.2W TOP PORT 100DB

Search across all available documentation for this part.

Active

CUI Devices

SPEAKER 8OHM 1.2W TOP PORT 100DB

Technical Specifications

Parameters and characteristics for this part

Specification	CMS-3060-128SP-67

Distortion Rating	10 %
Efficiency - dBA	100 dBA
Efficiency - Testing	1.2 W/100mm
Efficiency - Type	Sound Pressure Level (SPL)
Frequency - Self Resonant	850 Hz
Frequency Range [Max]	10 kHz
Frequency Range [Min]	680 Hz
Height - Seated (Max) [Max]	5.7 mm
Height - Seated (Max) [Max]	0.224 in
Impedance	8 Ohms
Ingress Protection	IP67 - Dust Tight, Waterproof
Material - Cone	Polyethylene Terephthalate (PET)
Material - Magnet	Nd-Fe-B
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Port Location	Top
Power - Max [Max]	1.5 W
Power - Rated	1.2 W
Shape	Round
Size / Dimension [diameter]	30 mm
Size / Dimension [diameter]	1.181 inches
Technology	Magnetic
Termination	Solder Pads
Type	General Purpose

Part	Port Location	Frequency - Self Resonant	Frequency Range [Max]	Frequency Range [Min]	Distortion Rating	Technology	Efficiency - Type	Type	Efficiency - dBA	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Efficiency - Testing	Power - Rated	Impedance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Power - Max [Max]	Shape	Material - Cone	Termination	Material - Magnet	Ingress Protection
CUI Devices CMS-3060-128SP-67	Top	850 Hz	10 kHz	680 Hz	10 %	Magnetic	Sound Pressure Level (SPL)	General Purpose	100 dBA	-20 C	60 °C	30 mm	1.181 inches	1.2 W/100mm	1.2 W	8 Ohms	5.7 mm	0.224 in	1.5 W	Round	Polyethylene Terephthalate (PET)	Solder Pads	Nd-Fe-B	IP67 - Dust Tight Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Ohms General Purpose Speaker 1.2 W 680 Hz ~ 10 kHz Top Round
