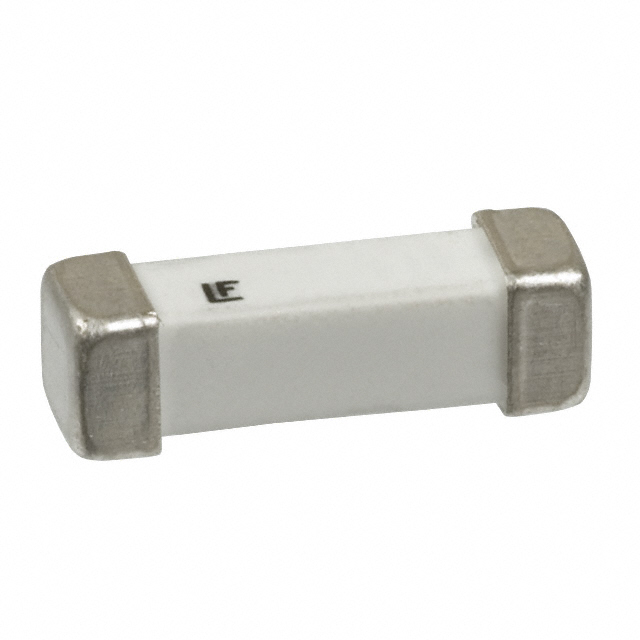

0461.500ER
ActiveELECTRIC FUSE, SLOW BLOW, 0.5A, 600VAC, 60A (IR), SURFACE MOUNT, HALOGEN FREE AND ROHS COMPLIANT
Deep-Dive with AI
Search across all available documentation for this part.
0461.500ER
ActiveELECTRIC FUSE, SLOW BLOW, 0.5A, 600VAC, 60A (IR), SURFACE MOUNT, HALOGEN FREE AND ROHS COMPLIANT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0461.500ER |
|---|---|
| Applications | Telecom |
| Approval Agency | CSA, UR |
| Breaking Capacity @ Rated Voltage | 60 A, 100 A |
| Current Rating (Amps) | 0.5 A |
| DC Cold Resistance | 0.56 Ohms |
| Fuse Type | Board Mount |
| Melting I²t | 0.84 |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 2-SMD, Square End Block |
| Response Time | Slow Blow |
| Size / Dimension [x] | 0.398 in |
| Size / Dimension [x] | 10.1 mm |
| Size / Dimension [y] | 0.123 in |
| Size / Dimension [y] | 3.12 mm |
| Size / Dimension [z] | 3.12 mm |
| Size / Dimension [z] | 0.123 " |
| Voltage Rating - AC | 600 VAC |
| Voltage Rating - DC | 80 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.19 | |
| 5 | $ 1.82 | |||
| 10 | $ 1.68 | |||
| 50 | $ 1.39 | |||
| 100 | $ 1.28 | |||
| 250 | $ 1.15 | |||
| 500 | $ 1.06 | |||
| 1000 | $ 1.00 | |||
| Digi-Reel® | 1 | $ 2.19 | ||
| 5 | $ 1.82 | |||
| 10 | $ 1.68 | |||
| 50 | $ 1.39 | |||
| 100 | $ 1.28 | |||
| 250 | $ 1.15 | |||
| 500 | $ 1.06 | |||
| 1000 | $ 1.00 | |||
| Tape & Reel (TR) | 2500 | $ 0.82 | ||
Description
General part information
0461.500 Series
The Littelfuse 461 Series TeleLink® surface mount, surge tolerant fuse, offers over-current protection for a wide range of telecom applications without requiring a series resistor. When used in conjunction with a Littelfuse SIDACtor® Transient Voltage Suppressor (TVS) or a GreentubeTM gas plasma arrestor, this combination provides a compliant solution for standards and recommendations such as GR-1089—Core, TIA-968-A, UL/EN/IEC 60950, and ITU K.20 and K.21. The coordination requirement contained in GR-1089—Core, and ITU K.20/21 may require a series impedance device.
