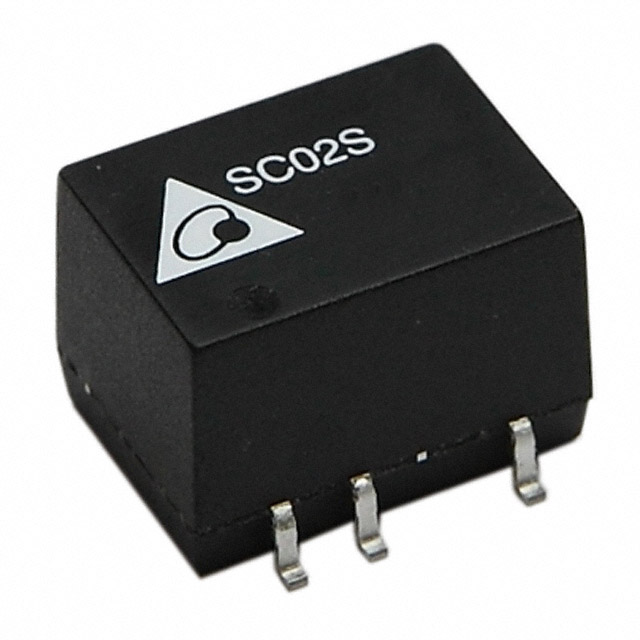

SC02D1215A

Obsolete

Delta Electronics

DC DC CONVERTER +/-15V 2W

Search across all available documentation for this part.

Obsolete

Delta Electronics

DC DC CONVERTER +/-15V 2W

Technical Specifications

Parameters and characteristics for this part

Part	Power (Watts)	Efficiency	Features	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Mounting Type	Voltage - Input (Min) [Min]	Voltage - Output 2	Package / Case	Number of Outputs	Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input (Max) [Max]	Applications	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)
Delta Electronics SC02D0515A	2 W	79 %	SCP	1000 V	85 °C	-40 °C	15 V	Surface Mount	4.5 V	-15 V	8-SMD Module 5 Leads	2	Isolated Module	9.3 mm	0.35 "	9 mm	0.5 in	12.8 mm	0.37 "	5.5 V	Medical	66 mA
Delta Electronics SC02D1215A	2 W		SCP	1000 V	85 °C	-40 °C	15 V	Surface Mount	10.8 V	-15 V	8-SMD Module 5 Leads	2	Isolated Module	9.3 mm	0.35 "	9 mm	0.5 in	12.8 mm	0.37 "	13.2 V	Medical	66 mA
Delta Electronics SC02D1212A	2 W		SCP	1000 V	85 °C	-40 °C	12 V	Surface Mount	10.8 V	-12 V	8-SMD Module 5 Leads	2	Isolated Module	9.3 mm	0.35 "	9 mm	0.5 in	12.8 mm	0.37 "	13.2 V	Medical		83 mA	83 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 2 Output 15V -15V 66mA, 66mA 10.8V - 13.2V Input
