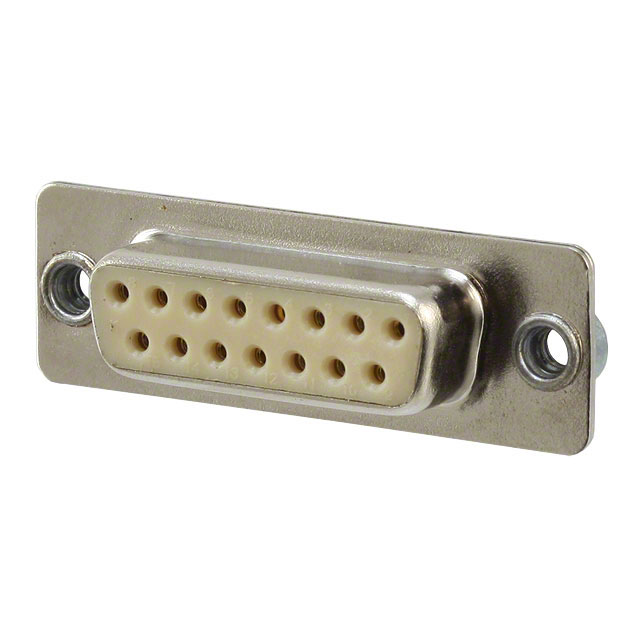

772-E15-213R011 - 772-E15-213R011

772-E15-213R011

Active
MH Connectors

CONN D-SUB RCPT 15P PNL MNT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

Documents3D Product Image ENDrawing EN+4
772-E15-213R011 - 772-E15-213R011

772-E15-213R011

Active
MH Connectors

CONN D-SUB RCPT 15P PNL MNT SLDR

Deep-Dive with AI

Documents3D Product Image ENDrawing EN+4

Technical Specifications

Parameters and characteristics for this part

Specification772-E15-213R011
ColorWhite
Connector StyleD-Sub
Connector TypeReceptacle, Female Sockets
Contact FinishGold
Contact Finish ThicknessFlash
Contact MaterialBrass
Contact TypeSignal
Current Rating (Amps)5 A
Dielectric MaterialPolyamide (PA6T), Nylon 6T
Flange FeatureBoard Side
Ingress ProtectionIP67 - Dust Tight, Waterproof
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Panel Mount
Number of Positions15
Number of Rows2
Shell Material, FinishNickel Plated, Steel
Shell Size, Connector Layout2
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 14.82
10$ 11.39
25$ 10.30
40$ 9.79
80$ 9.10
230$ 8.17
440$ 7.66
945$ 7.13
NewarkEach 50$ 11.94
100$ 10.94
250$ 10.16
500$ 9.49

Description

General part information

772-E15 Series

15 Position D-Sub Receptacle, Female Sockets Connector
