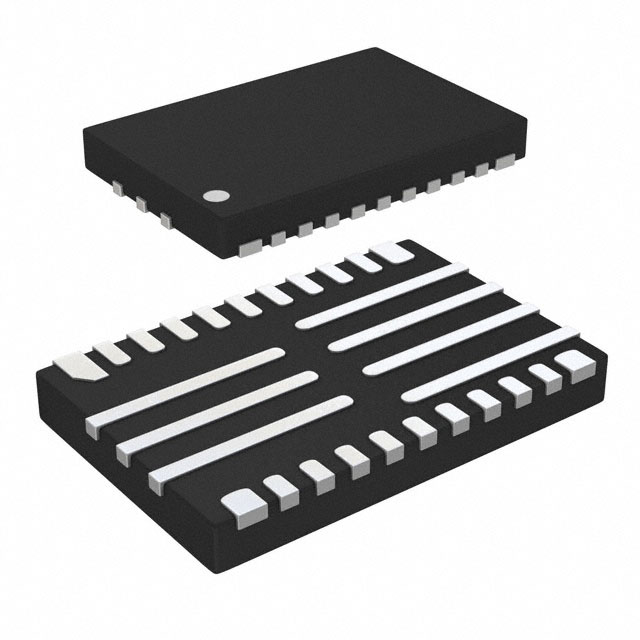

MP86885GQWT-P

NRND

MONOLITHIC POWER SYSTEMS (MPS)

IC HALF BRIDGE DRIVER 40A 29TQFN

Search across all available documentation for this part.

NRND

MONOLITHIC POWER SYSTEMS (MPS)

IC HALF BRIDGE DRIVER 40A 29TQFN

Technical Specifications

Parameters and characteristics for this part

Specification	MP86885GQWT-P

Applications	General Purpose
Current - Output / Channel [custom]	40 A
Fault Protection	Over Temperature, Current Limiting
Features	Bootstrap Circuit, Status Flag
Interface	Logic
Load Type	Inductive
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Supplier Device Package	29-FC-TQFN (4x6)
Technology	Power MOSFET
Voltage - Load [Max]	14 V
Voltage - Load [Min]	4.5 V
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

Part	Current - Output / Channel [custom]	Voltage - Load [Max]	Voltage - Load [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Technology	Voltage - Supply [Min]	Voltage - Supply [Max]	Interface	Load Type	Mounting Type	Fault Protection	Applications	Features	Supplier Device Package
MONOLITHIC POWER SYSTEMS (MPS) MP86885GQWT-Z	40 A	14 V	4.5 V	-40 °C	125 ¯C	Power MOSFET	4.5 V	5.5 V	Logic	Inductive	Surface Mount	Current Limiting Over Temperature	General Purpose	Bootstrap Circuit Status Flag	29-FC-TQFN (4x6)
MONOLITHIC POWER SYSTEMS (MPS) MP86885GQWT-P	40 A	14 V	4.5 V	-40 °C	125 ¯C	Power MOSFET	4.5 V	5.5 V	Logic	Inductive	Surface Mount	Current Limiting Over Temperature	General Purpose	Bootstrap Circuit Status Flag	29-FC-TQFN (4x6)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Half Bridge Driver General Purpose Power MOSFET 29-FC-TQFN (4x6)
