BC4LH-S25-TL

Active

Panduit Corp

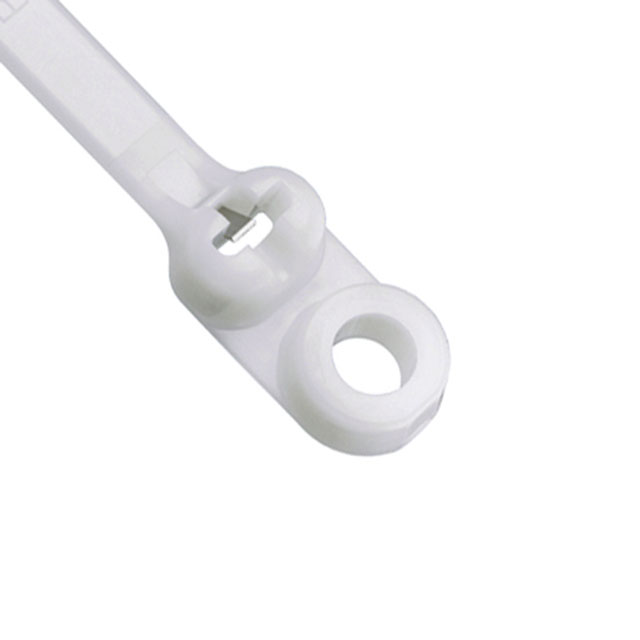

DOME-TOP BARB TY CLAMP TIE, 15.5", LIGHT-HEAVY, NYLON 6.6, NATURAL, SCREW HOLE SIZE 1/4 (M8) ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Panduit Corp

DOME-TOP BARB TY CLAMP TIE, 15.5", LIGHT-HEAVY, NYLON 6.6, NATURAL, SCREW HOLE SIZE 1/4 (M8) ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Features	Length - Actual [x]	Length - Actual [x]	Width	Width [x]	Tensile Strength	Tensile Strength	Length - Approximate [x]	Color	Material	Wire/Cable Tie Type	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Mounting Type
Panduit Corp BC4LH-S25-L0	Weather Resistant	1.292 ft	393.71 mm	7 mm	0.275 "	54.43 kg	120 lbs	15.5 "	Black	Polyamide (PA66) Nylon 6/6	Locking Standard	4 in	101.6 mm	Mounting Hole Screw Mount
Panduit Corp BC4LH-S25-L		1.292 ft	393.71 mm	7 mm	0.275 "	54.43 kg	120 lbs	15.5 "	Natural	Polyamide (PA66) Nylon 6/6	Locking Standard	4 in	101.6 mm	Mounting Hole Screw Mount
Panduit Corp BC4LH-S25-TL0	Weather Resistant	1.292 ft	393.71 mm	7 mm	0.275 "	54.43 kg	120 lbs	15.5 "	Black	Polyamide (PA66) Nylon 6/6	Locking Standard	4 in	101.6 mm	Mounting Hole Screw Mount
Panduit Corp BC4LH-S25-TL		1.292 ft	393.71 mm	7 mm	0.275 "	54.43 kg	120 lbs	15.5 "	Natural	Polyamide (PA66) Nylon 6/6	Locking Standard	4 in	101.6 mm	Mounting Hole Screw Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Standard, Locking Natural 4.00" (101.60mm) 0.275" (7.00mm) 120 lbs (54.43 kg)
