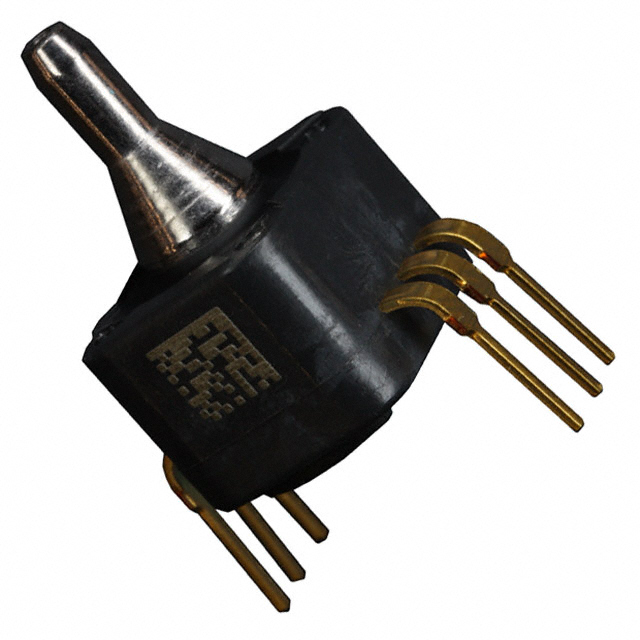

40PC015G2A
ActiveHoneywell Sensing and Productivity Solutions
SENSOR 15PSIG 0.18" 4.5V
Deep-Dive with AI
Search across all available documentation for this part.
40PC015G2A
ActiveHoneywell Sensing and Productivity Solutions
SENSOR 15PSIG 0.18" 4.5V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 40PC015G2A |
|---|---|
| Accuracy | 4 % |
| Applications | Board Mount |
| Features | Amplified Output |
| Maximum Pressure [Max] | 310.26 kPa |
| Maximum Pressure [Max] | 45 PSI |
| Mounting Type | Through Hole |
| Operating Pressure [custom] | 15 PSI |
| Operating Pressure [custom] | 103.42 kPa |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -45 °C |
| Output [Max] | 4.5 V |
| Output [Min] | 0.5 V |
| Output Type | Analog Voltage |
| Package / Case | 6-DIP Module |
| Port Style | Barbless |
| Pressure Type | Vented Gauge |
| Termination Style | PC Pin |
| Voltage - Supply [Max] | 5.25 V |
| Voltage - Supply [Min] | 4.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 50 | $ 306.65 | |
Description
General part information
40PC015 Series
Pressure Sensor 15PSI (103.42kPa) Vented Gauge Male - 0.18" (4.57mm) Tube 0.5 V ~ 4.5 V 6-DIP Module
