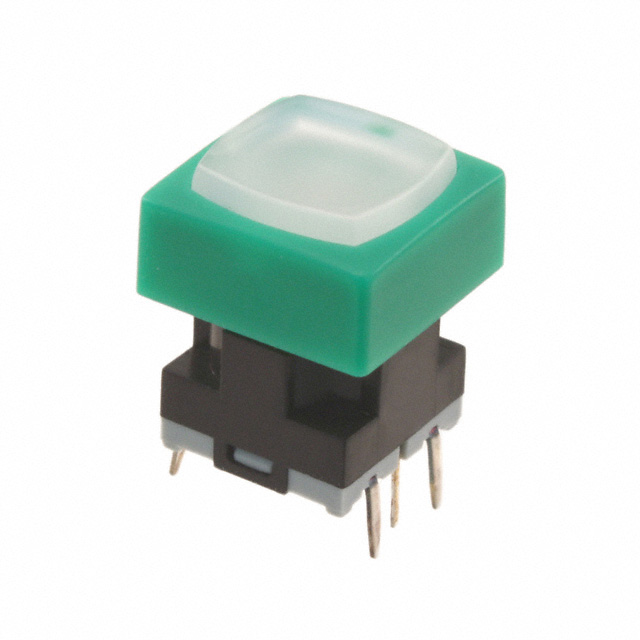

JB15HBPF-BF

Active

NKK Switches

ILLUMINATED LOW PROFILE PROCESS SEALED TACTILE

Search across all available documentation for this part.

Active

NKK Switches

ILLUMINATED LOW PROFILE PROCESS SEALED TACTILE

Technical Specifications

Parameters and characteristics for this part

Specification	JB15HBPF-BF

Actuator Height off PCB, Vertical	14.7 mm
Actuator Material	Polybutylene Terephthalate (PBT), Glass Filled
Actuator Orientation	Top Actuated
Actuator Type	Square Button
Circuit	SPST-NO
Contact Rating @ Voltage	0.125 A, 24 VDC
Features	Process Sealed
Illumination	Illuminated
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	2.1 VDC
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles
Mounting Type	Through Hole
Operating Force	265 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Outline [x]	10 mm
Outline [y]	10 mm
Switch Function	Off-Mom
Switch Travel [custom]	0.3 mm
Termination Style	PC Pin

Part	Illumination Type, Color	Contact Rating @ Voltage	Circuit	Ingress Protection	Actuator Height off PCB, Vertical	Actuator Orientation	Mounting Type	Illumination Voltage (Nominal)	Features	Switch Travel [custom]	Illumination	Mechanical Life	Termination Style	Outline [y]	Outline [x]	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Operating Force	Switch Function	Actuator Material
NKK Switches JB15HBPF-BF	Green LED	0.125 A 24 VDC	SPST-NO	IP67 - Dust Tight Waterproof	14.7 mm	Top Actuated	Through Hole	2.1 VDC	Process Sealed	0.3 mm	Illuminated	1000000 Cycles	PC Pin	10 mm	10 mm	70 °C	-25 °C	Square Button	265 gf	Off-Mom	Polybutylene Terephthalate (PBT) Glass Filled

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
