3321-00003

Active

Amphenol SV Microwave

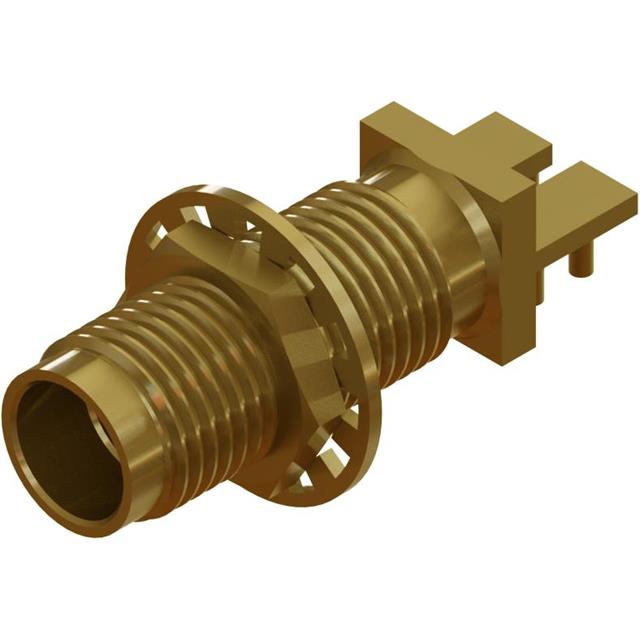

1.85MM FEMALE BULKHEAD PCB EDGE

Search across all available documentation for this part.

Active

Amphenol SV Microwave

1.85MM FEMALE BULKHEAD PCB EDGE

Technical Specifications

Parameters and characteristics for this part

Specification	3321-00003

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	1.85 mm
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polyetherimide (PEI)
Frequency - Max [Max]	67 GHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	End Launch, Panel Mount, Right Angle, Board Edge
Number of Ports	1
Shield Termination	Solder

Part	Dielectric Material	Connector Style	Impedance	Body Finish	Contact Termination	Center Contact Material	Mounting Type	Number of Ports	Housing Color	Shield Termination	Body Material	Mounting Feature	Frequency - Max [Max]	Center Contact Plating	Connector Type
Amphenol SV Microwave 3321-00003	Polyetherimide (PEI)	1.85 mm	50 Ohms	Nickel	Solder	Beryllium Copper	Board Edge End Launch Panel Mount Right Angle	1	Silver	Solder	Brass	Bulkhead - Front Side Nut	67 GHz	Gold	Female Socket Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.85mm Connector Jack, Female Socket 50 Ohms Board Edge, End Launch; Panel Mount, Right Angle Solder
