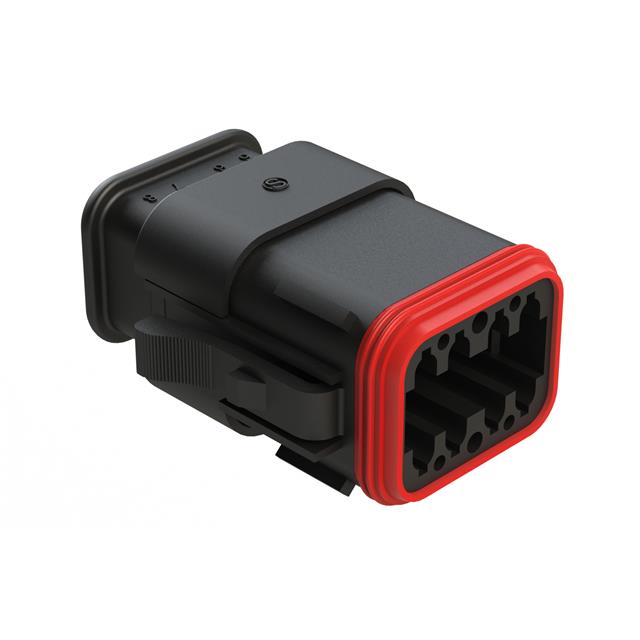

AT06-08SB-SR2BK

Active

Amphenol Sine Systems Corp

CONN PLUG HSG 8POS 14-20AWG

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN PLUG HSG 8POS 14-20AWG

Technical Specifications

Parameters and characteristics for this part

Specification	AT06-08SB-SR2BK

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Sealed, Strain Relief, Cap (Cover)
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	8
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

Part	Insulation Material	Features	Connector Type	Mounting Type	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Note	Contact Type	Contact Termination	Color	Number of Positions
Amphenol Sine Systems Corp AT06-08SB-SRBK	Thermoplastic	Cap (Cover) Sealed Strain Relief	Plug	Free Hanging (In-Line)	2	-55 °C	125 °C	Latch Lock	Contacts Not Included	Female Socket	Crimp	Black	8
Amphenol Sine Systems Corp AT06-08SB-OMBLK	Polyamide (PA66) Nylon 6/6 Glass Filled	IP67	Plug	Free Hanging (In-Line)	2	-55 °C	125 °C	Latch Lock	Contacts Not Included	Female Socket	Crimp	Black	8
Amphenol Sine Systems Corp AT06-08SB-SS01	Thermoplastic		Plug	Free Hanging (In-Line)	2	-55 °C	125 °C	Latch Lock	Contacts Not Included	Female Socket	Crimp	Black	8
Amphenol Sine Systems Corp AT06-08SB-SR2BK	Thermoplastic	Cap (Cover) Sealed Strain Relief	Plug	Free Hanging (In-Line)	2	-55 °C	125 °C	Latch Lock	Contacts Not Included	Female Socket	Crimp	Black	8
Amphenol Sine Systems Corp AT06-08SB-EC01	Thermoplastic	Cap (Cover)	Plug	Free Hanging (In-Line)	2	-55 °C	125 °C	Latch Lock	Contacts Not Included	Female Socket	Crimp	Black	8
Amphenol Sine Systems Corp AT06-08SB	Thermoplastic	Sealed	Plug	Free Hanging (In-Line)	2	-55 °C	125 °C	Latch Lock	Contacts Not Included	Female Socket	Crimp	Black	8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Rectangular Connectors - Housings Plug Black
