GRS-4012-0066

Active

CW Industries

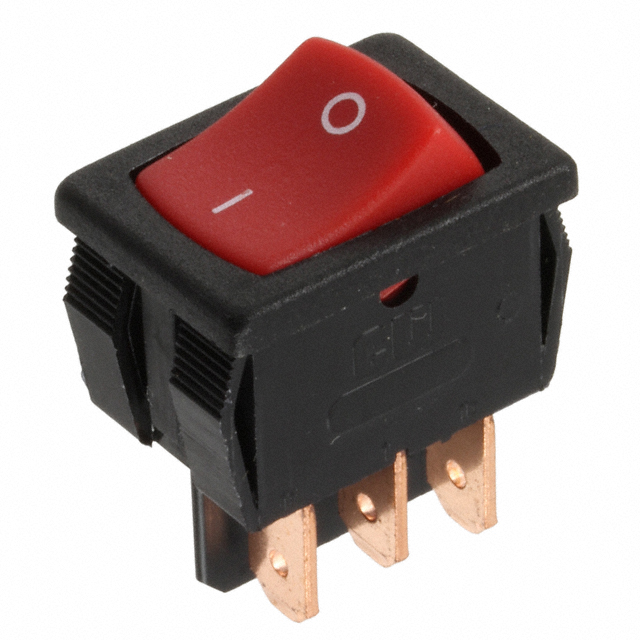

SWITCH ROCKER SPDT 13A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GRS-4012-0066

Active

CW Industries

SWITCH ROCKER SPDT 13A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GRS-4012-0066

Actuator Marking	O -
Actuator Type	Concave (Curved)
Circuit	SPDT
Color - Actuator/Cap	Red
Current Rating (Amps)	13 A
Electrical Life	25000 Steps
Features	Terminal Barriers
Mechanical Life	25000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions	Rectangular
Panel Cutout Dimensions [x]	19.2 mm
Panel Cutout Dimensions [y]	12.9 mm
Switch Function	On-On
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V

GRS-4012 Series

Part	Circuit	Current Rating (Amps)	Mounting Type	Electrical Life	Actuator Marking	Features	Switch Function	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Panel Cutout Dimensions [y]	Panel Cutout Dimensions	Panel Cutout Dimensions [x]	Color - Actuator/Cap	Termination Style	Mechanical Life
CW Industries GRS-4012A-0010	SPDT	8 A	Panel Mount Snap-In	25000 Steps	O I	Terminal Barriers	On-Mom	Concave (Curved)	-20 C	105 ░C	125 V	12.9 mm	Rectangular	19.2 mm	Black	Quick Connect - 0.187" (4.7mm)	25000 Steps
CW Industries GRS-4012-0049	SPDT	8 A	Panel Mount Snap-In	25000 Steps	No Marking		On-On	Concave (Curved)	-20 C	105 ░C	125 V	12.9 mm	Rectangular	19.2 mm	Black	Quick Connect - 0.187" (4.7mm)	25000 Steps
CW Industries GRS-4012-0059	SPDT	13 A	Panel Mount Snap-In	25000 Steps	No Marking	Terminal Barriers	On-On	Concave (Curved)	-20 C	105 ░C	125 V	12.9 mm	Rectangular	19.2 mm	Blue	Quick Connect - 0.187" (4.7mm)	25000 Steps
CW Industries GRS-4012-0051	SPDT	13 A	Panel Mount Snap-In	25000 Steps	No Marking	Terminal Barriers	On-On	Concave (Curved)	-20 C	105 ░C	125 V	12.9 mm	Rectangular	19.2 mm	Black	Quick Connect - 0.110" (2.8mm)	25000 Steps
CW Industries GRS-4012-0034	SPDT	16 A	Panel Mount Snap-In	25000 Steps	Bump	Polarized	On-On	Concave (Curved)	-20 C	105 ░C	125 V	12.9 mm	Rectangular	19.2 mm	Brown	Quick Connect - 0.187" (4.7mm)	25000 Steps
CW Industries GRS-4012-0048	SPDT	16 A	Panel Mount Snap-In	25000 Steps	No Marking	Polarized	On-On	Concave (Curved)	-20 C	105 ░C	125 V	12.9 mm	Rectangular	19.2 mm	Black	Quick Connect - 0.187" (4.7mm)	25000 Steps
CW Industries GRS-4012-0057	SPDT	16 A	Panel Mount Snap-In	25000 Steps	Bump	Polarized	On-On	Concave (Curved)	-20 C	105 ░C	125 V	12.9 mm	Rectangular	19.2 mm	Bisque	Quick Connect - 0.187" (4.7mm)	25000 Steps
CW Industries GRS-4012A-0000	SPDT	13 A	Panel Mount Snap-In	25000 Steps	No Marking	Terminal Barriers	On-Mom	Concave (Curved)	-20 C	105 ░C	125 V	12.9 mm	Rectangular	19.2 mm	Black	Quick Connect - 0.187" (4.7mm)	25000 Steps
CW Industries GRS-4012-0066	SPDT	13 A	Panel Mount Snap-In	25000 Steps	O -	Terminal Barriers	On-On	Concave (Curved)	-20 C	105 ░C	125 V	12.9 mm	Rectangular	19.2 mm	Red	Quick Connect - 0.187" (4.7mm)	25000 Steps
CW Industries GRS-4012A-0001	SPDT	8 A	Panel Mount Snap-In	25000 Steps	No Marking	Terminal Barriers	On-Mom	Concave (Curved)	-20 C	105 ░C	125 V	12.9 mm	Rectangular	19.2 mm	Black	Quick Connect - 0.187" (4.7mm)	25000 Steps

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.04
		10	$ 0.94
		25	$ 0.89
		50	$ 0.84
		100	$ 0.80
		250	$ 0.77
		500	$ 0.72
		1000	$ 0.68

Description

General part information

GRS-4012 Series

Rocker Switch SPDT 13A (AC) 125 V Panel Mount, Snap-In
