09365102701

Active

HARTING Technology Group

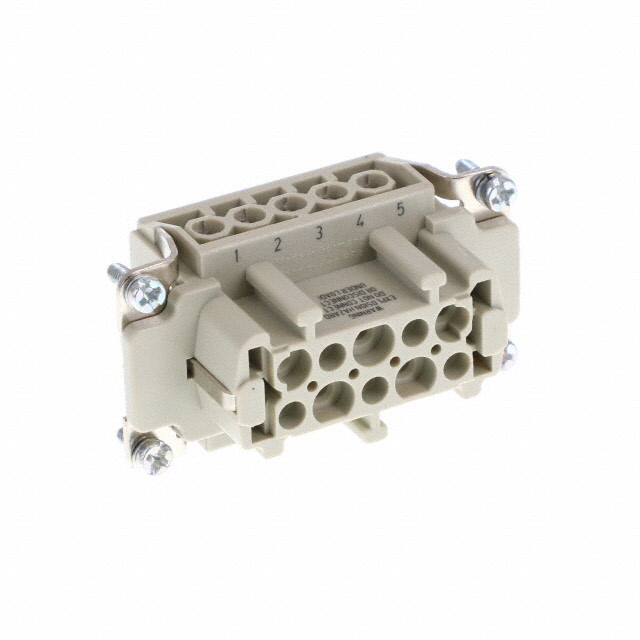

HEAVY DUTY CONNECTOR, HAN EX SERIES, INSERT, 9+PE CONTACTS, 10B, RECEPTACLE, SCREW SOCKET

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HAN EX SERIES, INSERT, 9+PE CONTACTS, 10B, RECEPTACLE, SCREW SOCKET

Technical Specifications

Parameters and characteristics for this part

Specification	09365102701

Color	Gray
Contact Finish	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	16 A
Gender	Female
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	10+Ground
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Size	10B
Termination Style	Screw
Voltage Rating	90 V

Part	Color	Contact Finish	Termination Style	Housing Material	Number of Positions	Voltage Rating	Gender	Size	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Material Flammability Rating	Current Rating (Amps)
HARTING Technology Group 09365102701	Gray	Silver	Screw	Polycarbonate (PC)	10+Ground	90 V	Female	10B	-20 C	40 °C	Copper Alloy	UL94 V-0	16 A
HARTING Technology Group 09365102601	Gray	Silver	Screw	Polycarbonate (PC)	10+Ground	90 V	Male	10B	-20 C	40 °C	Copper Alloy	UL94 V-0	16 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Insert Gray 10+Ground Position Screw
