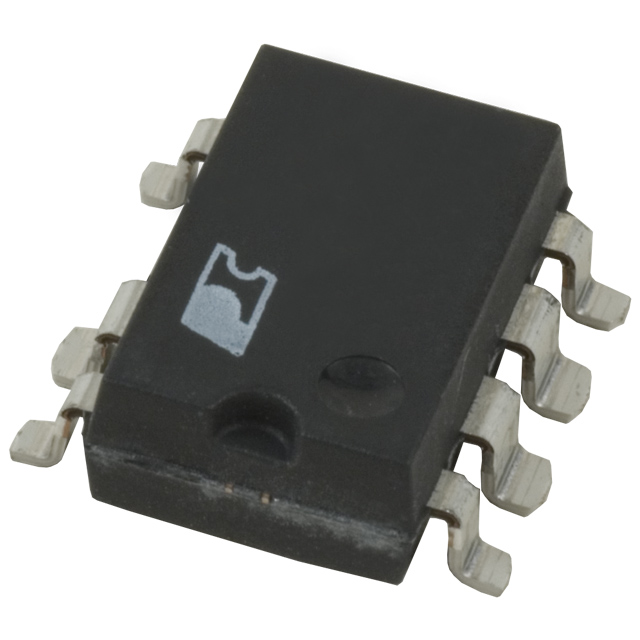

TOP246GN-TL

Power Integrations

AC-DC CONV, FLYBACK, -40 TO 150 DEGC ROHS COMPLIANT: YES

Search across all available documentation for this part.

Power Integrations

AC-DC CONV, FLYBACK, -40 TO 150 DEGC ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	TOP246GN-TL

Control Features	Frequency Control
Duty Cycle	66.5 %
Fault Protection	Over Temperature, Current Limiting, Over Voltage
Frequency - Switching [Max]	132 kHz
Frequency - Switching [Min]	66 kHz
Internal Switch(s)	True
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Isolation	Isolated
Package / Case	8-SMD (7 Leads), Gull Wing
Power (Watts)	34 W
Supplier Device Package	SMD-8B
Topology	Flyback
Voltage - Breakdown	700 V

Part	Output Isolation	Fault Protection	Mounting Type	Power (Watts)	Supplier Device Package	Voltage - Breakdown	Operating Temperature [Max]	Operating Temperature [Min]	Duty Cycle	Control Features	Topology	Frequency - Switching [Max]	Frequency - Switching [Min]	Package / Case
Power Integrations TOP246GN-TL	Isolated	Current Limiting Over Temperature Over Voltage	Surface Mount	34 W	SMD-8B	700 V	150 °C	-40 °C	66.5 %	Frequency Control	Flyback	132 kHz	66 kHz	8-SMD (7 Leads) Gull Wing
Power Integrations TOP246R-TL	Isolated	Current Limiting Over Temperature Over Voltage	Surface Mount	64 W	TO-263-7C	700 V	150 °C	-40 °C	66.5 %	Frequency Control	Flyback	132 kHz	66 kHz	D2PAK TO-263-7 TO-263CB
Power Integrations TOP246FN	Isolated	Current Limiting Over Temperature Over Voltage	Through Hole	125 W	TO-262-7C	700 V	150 °C	-40 °C	66.5 %	Frequency Control	Flyback	132 kHz	66 kHz	TO-262-7

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Converter Offline Flyback Topology 66kHz ~ 132kHz SMD-8B
