Q-07022000R012i

Active

Amphenol Custom Cable

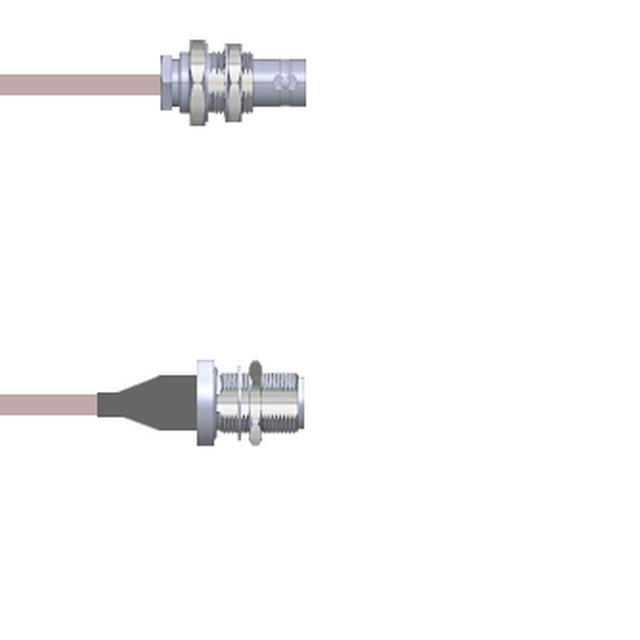

COAX CBL BNC TO N-TYPE 12"

Deep-Dive with AI

Search across all available documentation for this part.

Q-07022000R012i

Active

Amphenol Custom Cable

COAX CBL BNC TO N-TYPE 12"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-07022000R012i

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-316 DB
Color	Copper
Features	Shielded
Frequency - Max [Max]	2 GHz
Length	12 "
Length	304.8 mm
Overall Impedance	50 Ohms
Style	BNC to N-Type

Q-070220 Series

Part	2nd Contact Gender	2nd Connector Mounting Feature	Length	Length	Color	1st Connector Mounting Type	Features	1st Contact Gender	Frequency - Max [Max]	2nd Connector	Cable Type	Overall Impedance	2nd Connector Mounting Type	Style	1st Connector	1st Connector Mounting Feature	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-07022000R012i	Female	Bulkhead - Front Side Nut	12 "	304.8 mm	Copper	Panel Mount	Shielded	Female	2 GHz	N-Type Jack	RG-316 DB	50 Ohms	Panel Mount	BNC to N-Type	BNC Jack	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-07022000R.75M	Female	Bulkhead - Front Side Nut	29.53 "	750 mm	Copper	Panel Mount	Shielded	Female	2 GHz	N-Type Jack	RG-316 DB	50 Ohms	Panel Mount	BNC to N-Type	BNC Jack	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-07022000R108i	Female	Bulkhead - Front Side Nut	108 in	2.7 m	Copper	Panel Mount	Shielded	Female	2 GHz	N-Type Jack	RG-316 DB	50 Ohms	Panel Mount	BNC to N-Type	BNC Jack	Bulkhead - Front Side Nut	9 ft
Amphenol Custom Cable Q-07022000R060i	Female	Bulkhead - Front Side Nut	5 '	1.5 m	Copper	Panel Mount	Shielded	Female	2 GHz	N-Type Jack	RG-316 DB	50 Ohms	Panel Mount	BNC to N-Type	BNC Jack	Bulkhead - Front Side Nut	5 ft
Amphenol Custom Cable Q-07022000R006i	Female	Bulkhead - Front Side Nut	6 in	152.4 mm	Copper	Panel Mount	Shielded	Female	2 GHz	N-Type Jack	RG-316 DB	50 Ohms	Panel Mount	BNC to N-Type	BNC Jack	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-07022000R018i	Female	Bulkhead - Front Side Nut			Copper	Panel Mount	Shielded	Female	2 GHz	N-Type Jack	RG-316 DB	50 Ohms	Panel Mount	BNC to N-Type	BNC Jack	Bulkhead - Front Side Nut		457.2 mm	457.2 mm
Amphenol Custom Cable Q-07022000R2.5M	Female	Bulkhead - Front Side Nut	98.4 in	2.5 m	Copper	Panel Mount	Shielded	Female	2 GHz	N-Type Jack	RG-316 DB	50 Ohms	Panel Mount	BNC to N-Type	BNC Jack	Bulkhead - Front Side Nut	8.2 '
Amphenol Custom Cable Q-07022000R1.5M	Female	Bulkhead - Front Side Nut	59.1 in	1.5 m	Copper	Panel Mount	Shielded	Female	2 GHz	N-Type Jack	RG-316 DB	50 Ohms	Panel Mount	BNC to N-Type	BNC Jack	Bulkhead - Front Side Nut	4.9 ft
Amphenol Custom Cable Q-07022000R0.5M	Female	Bulkhead - Front Side Nut	19.69 "	50 cm	Copper	Panel Mount	Shielded	Female	2 GHz	N-Type Jack	RG-316 DB	50 Ohms	Panel Mount	BNC to N-Type	BNC Jack	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-07022000R072i	Female	Bulkhead - Front Side Nut	72 in	1.8 m	Copper	Panel Mount	Shielded	Female	2 GHz	N-Type Jack	RG-316 DB	50 Ohms	Panel Mount	BNC to N-Type	BNC Jack	Bulkhead - Front Side Nut	6 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 224.33
		25	$ 220.08
		50	$ 215.83
		100	$ 211.58
		250	$ 207.33

Description

General part information

Q-070220 Series

Cable Assembly Coaxial BNC to N-Type RG-316 DB 12.00" (304.80mm)

Documents

Technical documentation and resources

No documents available
