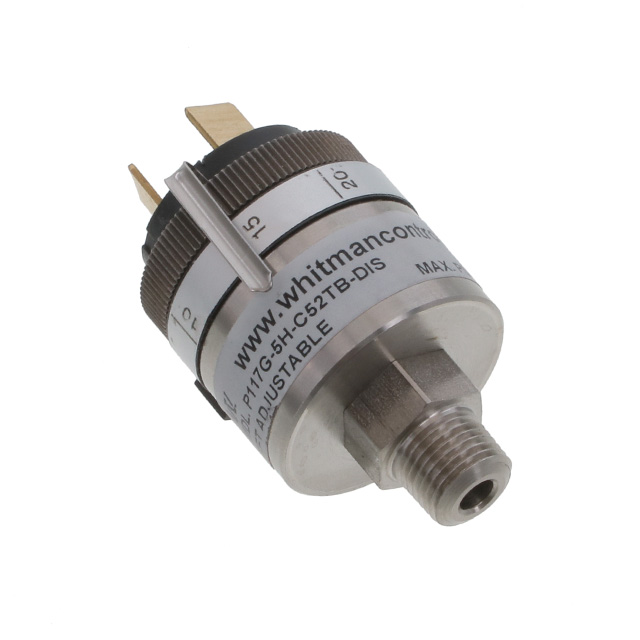

P117G-5H-C52TB-DIS

Active

Whitman Controls, LLC

PRESSURE SWITCH 3-50 PSIG

Search across all available documentation for this part.

Active

Whitman Controls, LLC

PRESSURE SWITCH 3-50 PSIG

Technical Specifications

Parameters and characteristics for this part

Part	Output Type	Termination Style	Package / Case	Pressure Type	Accuracy	Accuracy	Operating Pressure [Min]	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Max]	Port Style	Port Size	Port Size	Port Size	Maximum Pressure [Max]	Maximum Pressure [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Maximum Pressure	Maximum Pressure	Accuracy
Whitman Controls, LLC P117G-25H-C12TS-DIS	SPDT	Screw Terminal	Cylinder Threaded	Switch	5 PSI	34.47 kPa	9.7 PSI	66.88 kPa	250 PSI	1723.69 kPa	Threaded	0.125 "	3.18 mm	Male	250 PSI	1723.69 kPa	-54 °C	107 °C
Whitman Controls, LLC P117G-25H-C52L-DIS	SPDT	Wire Leads	Cylinder Threaded	Switch	5 PSI	34.47 kPa	9.7 PSI	66.88 kPa	250 PSI	1723.69 kPa	Threaded	0.125 "	3.18 mm	Male	250 PSI	1723.69 kPa	-54 °C	107 °C
Whitman Controls, LLC P117G-5H-C52TS-DIS	SPDT	Screw Terminal	Cylinder Threaded	Switch	1 PSI	6.89 kPa					Threaded	0.125 "	3.18 mm	Male			-54 °C	107 °C	344.74 kPa	50 PSI
Whitman Controls, LLC P117G-5H-C52TB-DIS	SPDT	Quick Connect - 0.250" (6.3mm)	Cylinder Threaded	Switch	1 PSI	6.89 kPa					Threaded	0.125 "	3.18 mm	Male			-54 °C	107 °C	344.74 kPa	50 PSI
Whitman Controls, LLC P117G-50H-C52L-DIS	SPDT	Wire Leads	Cylinder Threaded	Switch		10 PSI	20 PSI	137.9 kPa	500 PSI	3447.38 kPa	Threaded	0.125 "	3.18 mm	Male	500 PSI	3447.38 kPa	-54 °C	107 °C			68.95 kPa
Whitman Controls, LLC P117G-25H-C52TB-DIS	SPDT	Quick Connect - 0.250" (6.3mm)	Cylinder Threaded	Switch	5 PSI	34.47 kPa	9.7 PSI	66.88 kPa	250 PSI	1723.69 kPa	Threaded	0.125 "	3.18 mm	Male	250 PSI	1723.69 kPa	-54 °C	107 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 139.14

General part information

PRESSURE SWITCH 3-50 PSIG

Technical documentation and resources
