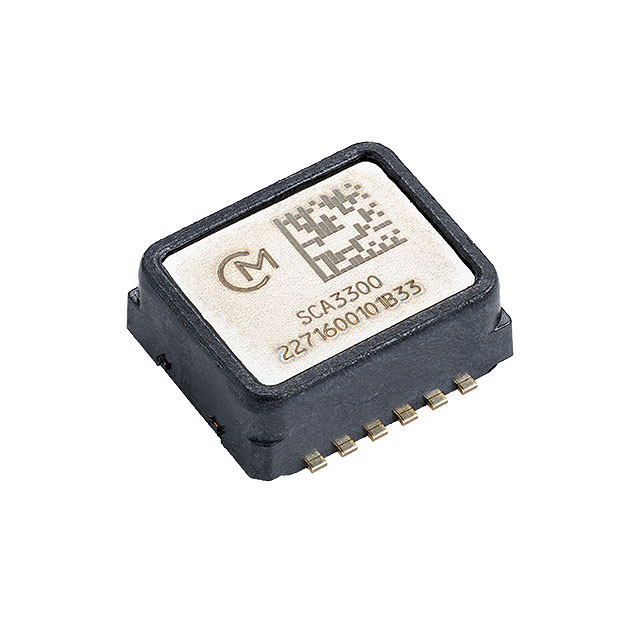

SCA3300-D01-1

Active

Murata Power Solutions Inc.

ACCELEROMETEREROMETER 1.5-6G SPI

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

ACCELEROMETEREROMETER 1.5-6G SPI

Technical Specifications

Parameters and characteristics for this part

Specification	SCA3300-D01-1

Acceleration Range	6 g, 3 g
Acceleration Range [Max]	1.5 g
Acceleration Range [Min]	-1.5 g
Axis [x]	X
Axis [y]	Y
Axis [z]	Z
Features	Adjustable Bandwidth, Selectable Scale
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output Type	SPI
Package / Case	Nonstandard
Sensitivity (LSB/g) [Max]	5400 LSB/g
Sensitivity (LSB/g) [Min]	1350 LSB/g
Type	Digital
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	3 V

Part	Axis [z]	Axis [y]	Axis [x]	Voltage - Supply	Mounting Type	Output Type	Package / Case	Type	Supplier Device Package	Acceleration Range	Acceleration Range [Max]	Acceleration Range [Min]	Sensitivity (LSB/g) [Min]	Sensitivity (LSB/g) [Max]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]
Murata Power Solutions Inc. SCA3300-D01	Z	Y	X	3.3 V	Surface Mount	SPI	12-SMD Flat Lead	Digital	12-SMD	3 g 6 g	1.5 g	-1.5 g
Murata Power Solutions Inc. SCA3300-D01-1	Z	Y	X		Surface Mount	SPI	Nonstandard	Digital		3 g 6 g	1.5 g	-1.5 g	1350 LSB/g	5400 LSB/g	Adjustable Bandwidth Selectable Scale	125 °C	-40 °C	3.6 V	3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Accelerometer X, Y, Z Axis ±1.5g, 3g, 6g
