EVB_RT7238DGQUF

Active

Richtek USA Inc.

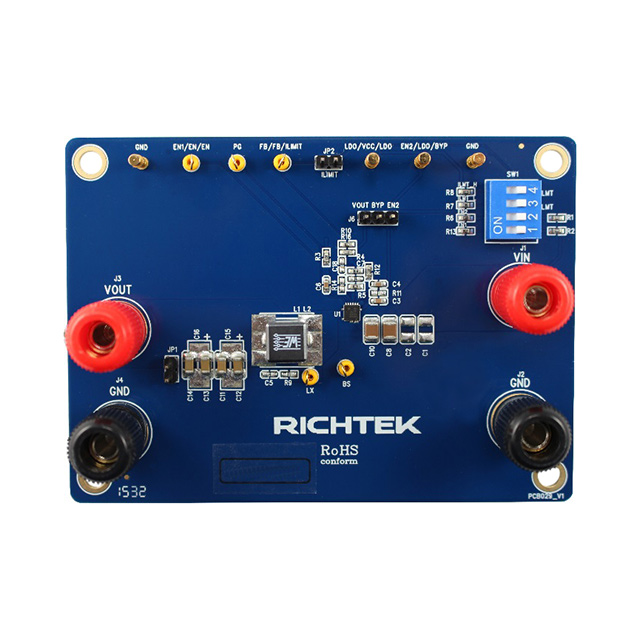

EVAL MODULE FOR RT7238DGQUF

Search across all available documentation for this part.

Active

Richtek USA Inc.

EVAL MODULE FOR RT7238DGQUF

Technical Specifications

Parameters and characteristics for this part

Part	Supplied Contents	Voltage - Output	Board Type	Frequency - Switching	Utilized IC / Part	Main Purpose	Current - Output	Voltage - Input [Min]	Voltage - Input [Max]	Outputs and Type	Outputs and Type	Regulator Topology	Output Configuration	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Supplier Device Package	Mounting Type	Number of Outputs	Topology	Function	Output Type	Voltage - Output (Max)	Output Type	Voltage - Output (Min/Fixed)
Richtek USA Inc. EVB_RT7238DGQUF	Board(s)	1.05 V 3.3 V	Fully Populated	500 kHz	RT7238D	DC/DC Step Down with LDO	8 A 70 mA	8 V	23 V	2	Non-Isolated	Buck
Richtek USA Inc. RT7238CGQUF				500 kHz			8 A						Positive	8 V	23 V	5.1 V	85 °C	-40 °C	10-PowerUFQFN	10-UQFN (3x3)	Surface Mount	1	Buck	Step-Down	1.81 mOhm
Richtek USA Inc. RT7238DGQUF				500 kHz			8 A						Positive	8 V	23 V		85 °C	-40 °C	10-PowerUFQFN	10-UQFN (3x3)	Surface Mount	1	Buck	Step-Down		5 V	Adjustable	0.9 V
Richtek USA Inc. RT7238BGQUF				500 kHz			8 A						Positive	8 V	23 V		85 °C	-40 °C	10-PowerUFQFN	10-UQFN (3x3)	Surface Mount	1	Buck	Step-Down	1.81 mOhm			3.35 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 44.19

General part information

RT7238D ACOT® DC/DC, Step Down with LDO 2, Non-Isolated Outputs Evaluation Board
