09806150100

Active

HARTING Technology Group

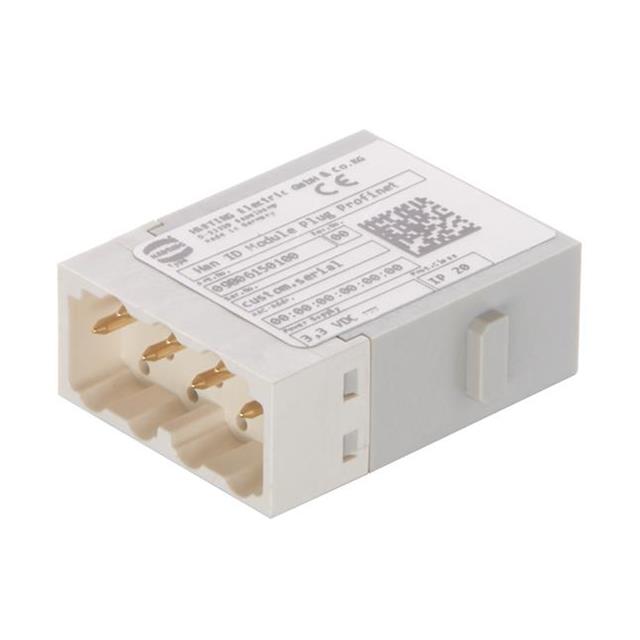

HAN-MODULAR PROFINET ID MODULE MALE

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN-MODULAR PROFINET ID MODULE MALE

Technical Specifications

Parameters and characteristics for this part

Specification	09806150100

Color	Gray, White
Connector Type	Module
Gender	Male
Housing Material	Liquid Crystal Polymer (LCP), Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	7
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Termination Style	Push In
Voltage Rating	24 VDC

Part	Color	Number of Positions	Connector Type	Housing Material	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Termination Style	Voltage Rating
HARTING Technology Group 09806150100	Gray White	7	Module	Liquid Crystal Polymer (LCP) Polycarbonate (PC)	Male	-40 °C	70 °C	UL94 V-0	Push In	24 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Module Gray, White 7 Position Push In
