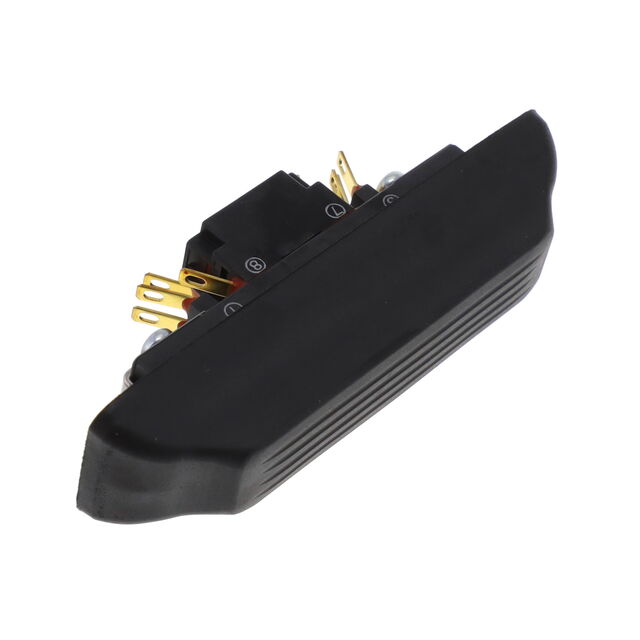

A4E-C211VA
ActiveOmron Electronics Inc-EMC Div
A4E-C211VA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A4E-C211VA |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Button, Rectangular, Rubber Cap |
| Circuit | 4PST-2NO/2NC |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 1 A, 300 mA |
| Electrical Life | 100000 Cycles |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] [custom] | 55 °C |
| Operating Temperature [Min] [custom] | -10 °C |
| Panel Cutout Dimensions [x] | 63.3 mm |
| Panel Cutout Dimensions [y] | 13.5 mm |
| Switch Function | Off-On-Off |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 85.85 | |
| 10 | $ 78.22 | |||
| 25 | $ 72.97 | |||
| 50 | $ 70.11 | |||
| 100 | $ 65.34 | |||
Description
General part information
A4E-C Series
Pushbutton Switch 4PST-2NO/2NC Standard Panel Mount, Front
