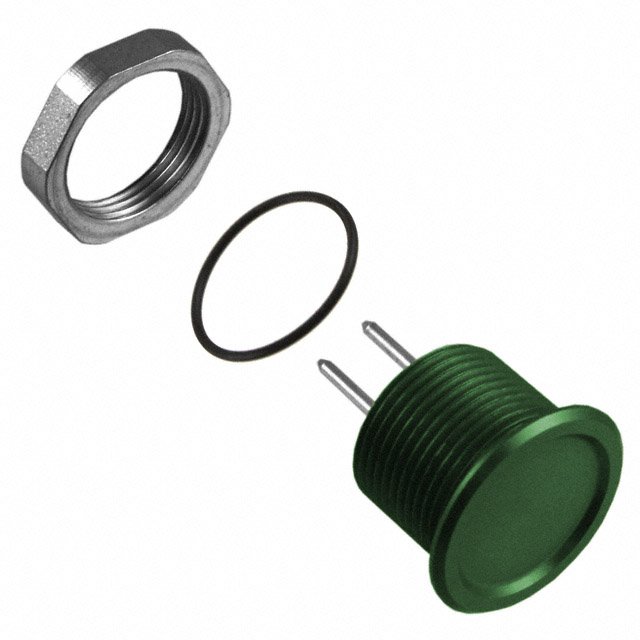

1241.2411.5

Active

SCHURTER Inc.

SWITCH PUSH SPST-NO 100MA 42V

Search across all available documentation for this part.

Active

SCHURTER Inc.

SWITCH PUSH SPST-NO 100MA 42V

Technical Specifications

Parameters and characteristics for this part

Specification	1241.2411.5

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	Green
Current Rating (Amps)	100 mA
Electrical Life	20000000 Cycles
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	16.2 mm
Switch Function	Off-Mom
Termination Style	PC Pin
Type	Piezo
Voltage Rating - AC	42 V
Voltage Rating - DC	60 VDC

Part	Current Rating (Amps)	Type	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Ingress Protection	Termination Style	Panel Cutout Dimensions [diameter]	Switch Function	Electrical Life	Color - Actuator/Cap	Actuator Marking	Circuit	Voltage Rating - DC	Mounting Type
SCHURTER Inc. 1241.2411.5	100 mA	Piezo	42 V	85 °C	-40 °C	Button Flush Round	IP67 - Dust Tight Waterproof	PC Pin	16.2 mm	Off-Mom	20000000 Cycles	Green	No Marking	SPST-NO	60 VDC	Panel Mount Front

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Piezo Panel Mount, Front
