082-346-RFX

Active

Amphenol RF

CONN TYPE N 0HZ TO 11GHZ 50OHM CRIMP ST PANEL MOUNT RCP GOLD

Search across all available documentation for this part.

Active

Amphenol RF

CONN TYPE N 0HZ TO 11GHZ 50OHM CRIMP ST PANEL MOUNT RCP GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	082-346-RFX

Body Finish	Nickel
Body Material	Brass
Cable Group	302, 9A, RG-8, 213, 9B, 225, 8A, 87, 214, 9, 393
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms

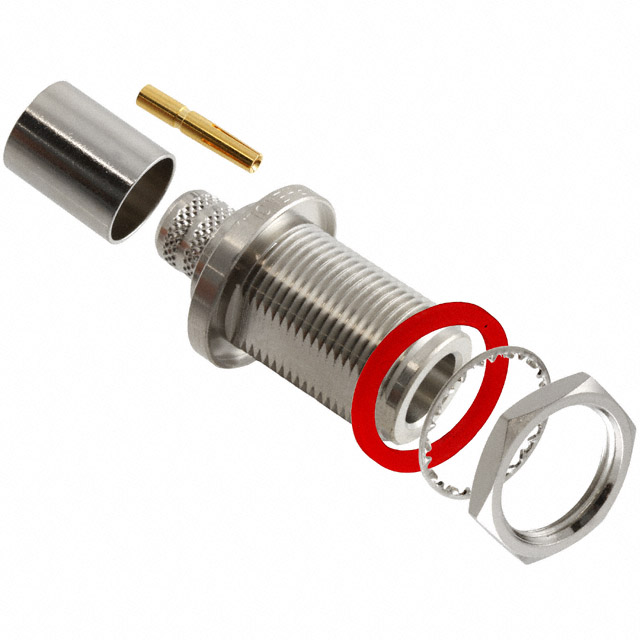

Includes	1 Lockwasher, 1 Contact, 1 Nut, 1 Ferrule, 1 Gasket, 1 Connector
Ingress Protection	Weatherproof
Insertion Loss	0.15 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	1500 V

Part	Cable Group	Connector Type	Contact Termination	Body Finish	Mating Cycles	Frequency - Max [Max]	Voltage Rating	Center Contact Material	Mounting Feature	Ingress Protection	Dielectric Material	Number of Ports	Insertion Loss	Includes	Shield Termination	Body Material	Impedance	Connector Style	Housing Color	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol RF 082-346-RFX	213 214 225 302 393 87 8A 9 9A 9B RG-8	Female Socket Jack	Crimp	Nickel	500	11 GHz	1500 V	Phosphor Bronze	Bulkhead - Front Side Nut	Weatherproof	Polytetrafluoroethylene (PTFE)	1	0.15 dB	1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut	Crimp	Brass	50 Ohms	N Type	Silver	Gold	-65 ░C	165 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N Type Connector Jack, Female Socket 50 Ohms Panel Mount Crimp
