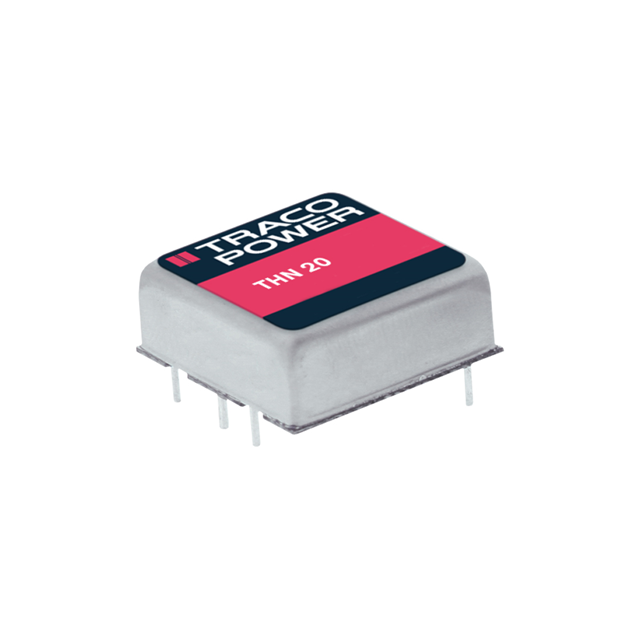

THN 20-4822

Active

Traco Power

DC DC CONVERTER +/-12V 20W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

THN 20-4822

Active

Traco Power

DC DC CONVERTER +/-12V 20W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	THN 20-4822

Applications	ITE (Commercial)
Current - Output (Max)	833 mA
Current - Output (Max)	833 mA
Efficiency	90 %
Features	Remote On/Off, OVP, SCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	75 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module
Power (Watts)	20 W
Size / Dimension [x]	1 in
Size / Dimension [x]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.39 in
Size / Dimension [z]	9.9 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	12 V
Voltage - Output 2	-12 V

THN 20 Series

Isolated DC/DC Converters - Through Hole

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Current - Output (Max) [Max]	Package / Case	Power (Watts)	Type	Efficiency	Voltage - Output 1	Applications	Voltage - Input (Min) [Min]	Number of Outputs	Voltage - Input (Max) [Max]	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Isolation	Features	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)
Traco Power THN 20-2410WI	-40 °C	75 ¯C	Through Hole	4.5 A	6-DIP Module	15 W	Isolated Module	86 %	3.3 V	ITE (Commercial)	9 V	1	36 V	CB cURus	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	1.5 kV	OVP Remote On/Off SCP
Traco Power THN 20-2411	-40 °C	75 ¯C	Through Hole	4 A	6-DIP Module	20 W	Isolated Module	90 %	5 V	ITE (Commercial)	18 V	1	36 V		25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	1.5 kV	OVP Remote On/Off SCP
Traco Power THN 20-4822	-40 °C	75 ¯C	Through Hole		6-DIP Module	20 W	Isolated Module	90 %	12 V	ITE (Commercial)	36 V	2	75 V		25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	1.5 kV	OVP Remote On/Off SCP	-12 V	833 mA	833 mA
Traco Power THN 20-2410	-40 °C	75 ¯C	Through Hole	4.5 A	6-DIP Module	15 W	Isolated Module	86 %	3.3 V	ITE (Commercial)	18 V	1	36 V		25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	1.5 kV	OVP Remote On/Off SCP
Traco Power THN 20-2411WI	-40 °C	75 ¯C	Through Hole	4 A	6-DIP Module	20 W	Isolated Module	89 %	5 V	ITE (Commercial)	9 V	1	36 V	CB cURus	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	1.5 kV	OVP Remote On/Off SCP
Traco Power THN 20-4825WI	-40 °C	75 ¯C	Through Hole		6-DIP Module	20 W	Isolated Module	91 %	24 V	ITE (Commercial)	18 V	2	75 V	CB cURus	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	1.5 kV	OVP Remote On/Off SCP	-24 V		417 mA	417 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 54.50
		10	$ 34.70

Description

General part information

THN 20 Series

Isolated DC/DC Converters - Through Hole
