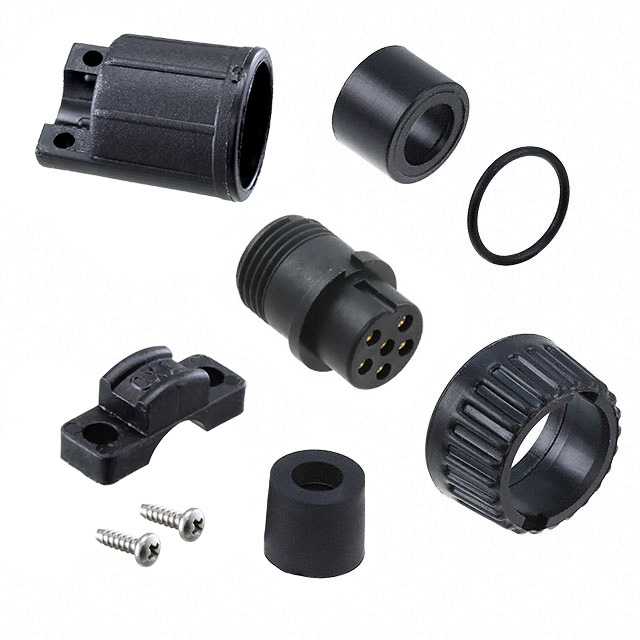

3382-6SG-528

Active

Conxall/Switchcraft

CONN PLUG FMALE 6P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3382-6SG-528

Active

Conxall/Switchcraft

CONN PLUG FMALE 6P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3382-6SG-528

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [diameter]	7.37 mm
Cable Opening [Max] [diameter]	0.29 in
Cable Opening [Min] [diameter]	7.11 mm
Cable Opening [Min] [diameter]	0.28 in
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Brass
Fastening Type	Bayonet Lock
Features	Cable Clamp, Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 V

3382-6S Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Fastening Type	Primary Material	Contact Finish - Mating	Shielding	Ingress Protection	Connector Type	Color	Number of Positions	Features	Contact Material	Mounting Type	Voltage Rating	Orientation	Backshell Material, Plating	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]
Conxall/Switchcraft 3382-6SG-324	-40 °C	115 °C	0.24 in	6.86 mm	6.1 mm	0.27 in	Bayonet Lock	Plastic	Gold	Unshielded	Weathertight	Female Sockets Plug	Black	6	Backshell	Brass	Free Hanging (In-Line)	600 V	Keyed	Nylon Polyamide (PA)
Conxall/Switchcraft 3382-6SG-315	-40 °C	115 °C					Bayonet Lock	Plastic	Gold	Unshielded	Weathertight	Female Sockets Plug	Black	6	Backshell	Brass	Free Hanging (In-Line)	600 V	Keyed	Nylon Polyamide (PA)	0.15 in 0.17 in	3.81 mm 4.32 mm
Conxall/Switchcraft 3382-6SG-318	-40 °C	115 °C					Bayonet Lock	Plastic	Gold	Unshielded	Weathertight	Female Sockets Plug	Black	6	Backshell	Brass	Free Hanging (In-Line)	600 V	Keyed	Nylon Polyamide (PA)			4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 3382-6SG-528	-40 °C	115 °C	0.28 in	7.37 mm	7.11 mm	0.29 in	Bayonet Lock	Plastic	Gold	Unshielded	Weathertight	Female Sockets Plug	Black	6	Backshell Cable Clamp	Brass	Free Hanging (In-Line)	600 V	Keyed	Nylon Polyamide (PA)
Conxall/Switchcraft 3382-6SG-524	-40 °C	115 °C	0.24 in	6.86 mm	6.1 mm	0.27 in	Bayonet Lock	Plastic	Gold	Unshielded	Weathertight	Female Sockets Plug	Black	6	Backshell Cable Clamp	Brass	Free Hanging (In-Line)	600 V	Keyed	Nylon Polyamide (PA)
Conxall/Switchcraft 3382-6SG-515	-40 °C	115 °C					Bayonet Lock	Plastic	Gold	Unshielded	Weathertight	Female Sockets Plug	Black	6	Backshell Cable Clamp	Brass	Free Hanging (In-Line)	600 V	Keyed	Nylon Polyamide (PA)	0.15 in 0.17 in	3.81 mm 4.32 mm
Conxall/Switchcraft 3382-6SG-3DC	-40 °C	115 °C					Bayonet Lock	Plastic	Gold	Unshielded	Weathertight	Female Sockets Plug	Black	6	Backshell	Brass	Free Hanging (In-Line)	600 V	Keyed	Nylon Polyamide (PA)
Conxall/Switchcraft 3382-6SG-521	-40 °C	115 °C	0.21 in	5.84 mm	5.33 mm	0.23 in	Bayonet Lock	Plastic	Gold	Unshielded	Weathertight	Female Sockets Plug	Black	6	Backshell Cable Clamp	Brass	Free Hanging (In-Line)	600 V	Keyed	Nylon Polyamide (PA)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.67
		10	$ 10.12
		25	$ 9.79

Description

General part information

3382-6S Series

6 Position Circular Connector Plug, Female Sockets Solder Cup

Documents

Technical documentation and resources
