10368-26-1-0500-011-1-TS

Active

CnC Tech, LLC

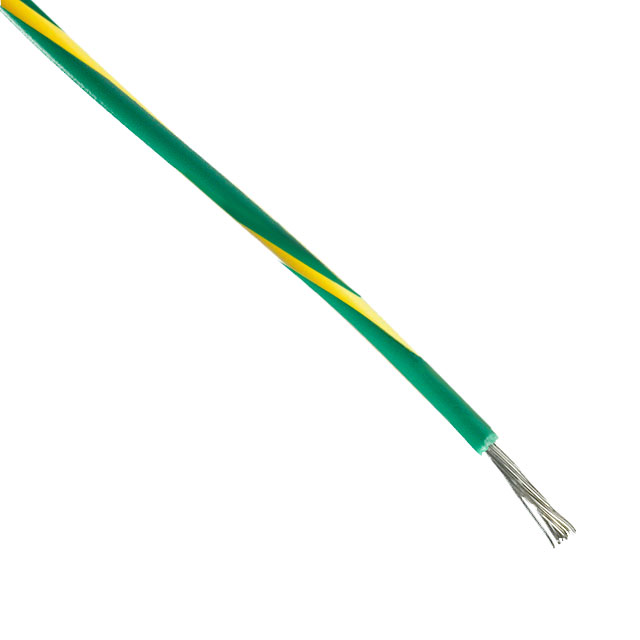

HOOK-UP STRND 26AWG GREEN/YELLOW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Prior to DC 22/03 Microsoft Word - Color cards-10368.docx +1

10368-26-1-0500-011-1-TS

Active

CnC Tech, LLC

HOOK-UP STRND 26AWG GREEN/YELLOW

Deep-Dive with AI

DocumentsDatasheet Prior to DC 22/03 Microsoft Word - Color cards-10368.docx +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10368-26-1-0500-011-1-TS

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [x]	7
Conductor Strand [y]	0.0063 in
Features	Oil Resistant
Jacket (Insulation) Diameter [diameter]	0.04 in
Jacket (Insulation) Diameter [diameter]	1.02 mm
Jacket (Insulation) Material	Polyethylene (XLPE), Irradiated
Jacket (Insulation) Thickness	0.25 mm
Jacket (Insulation) Thickness	0.01 in
Jacket Color	Green, Yellow
Length	15.24 m
Length [x]	30.5 m, 152.4 m, 7.62 m
Length [x]	100 ft, 50 ft, 500 ', 25 ft
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-10 °C
Ratings	UL Style 10368
Voltage	300 V
Wire Gauge	26 AWG

10368-26 Series

Part	Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Features	Conductor Strand [x]	Conductor Strand [y]	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length [x]	Ratings	Length [x]	Jacket (Insulation) Material	Cable Type	Jacket Color
CnC Tech, LLC 10368-26-1-0500-003-1-TS	300 V	105 ░C	-10 °C	26 AWG	0.04 in	1.02 mm	Oil Resistant	7	0.0063 in	Copper Tinned	0.25 mm	0.01 in	15.24 m	25 ft 50 ft 100 ft 500 '	UL Style 10368	7.62 m 30.5 m 152.4 m	Polyethylene (XLPE) Irradiated	Hook-Up	Yellow
CnC Tech, LLC 10368-26-1-0500-006-1-TS	300 V	105 ░C	-10 °C	26 AWG	0.04 in	1.02 mm	Oil Resistant	7	0.0063 in	Copper Tinned	0.25 mm	0.01 in		500 '	UL Style 10368	152.4 m	Polyethylene (XLPE) Irradiated	Hook-Up	Brown
CnC Tech, LLC 10368-26-1-0500-007-1-TS	300 V	105 ░C	-10 °C	26 AWG	0.04 in	1.02 mm	Oil Resistant	7	0.0063 in	Copper Tinned	0.25 mm	0.01 in	15.24 m	25 ft 50 ft 100 ft 500 '	UL Style 10368	7.62 m 30.5 m 152.4 m	Polyethylene (XLPE) Irradiated	Hook-Up	Green
CnC Tech, LLC 10368-26-1-0500-010-1-TS	300 V	105 ░C	-10 °C	26 AWG	0.04 in	1.02 mm	Oil Resistant	7	0.0063 in	Copper Tinned	0.25 mm	0.01 in	15.24 m	25 ft 50 ft 100 ft	UL Style 10368	7.62 m 30.5 m	Polyethylene (XLPE) Irradiated	Hook-Up	Violet
CnC Tech, LLC 10368-26-1-0500-011-1-TS	300 V	105 ░C	-10 °C	26 AWG	0.04 in	1.02 mm	Oil Resistant	7	0.0063 in	Copper Tinned	0.25 mm	0.01 in	15.24 m	25 ft 50 ft 100 ft 500 '	UL Style 10368	7.62 m 30.5 m 152.4 m	Polyethylene (XLPE) Irradiated	Hook-Up	Green Yellow
CnC Tech, LLC 10368-26-1-0500-004-1-TS	300 V	105 ░C	-10 °C	26 AWG	0.04 in	1.02 mm	Oil Resistant	7	0.0063 in	Copper Tinned	0.25 mm	0.01 in	15.24 m	25 ft 50 ft 100 ft 500 '	UL Style 10368	7.62 m 30.5 m 152.4 m	Polyethylene (XLPE) Irradiated	Hook-Up	Red
CnC Tech, LLC 10368-26-1-0500-008-1-TS	300 V	105 ░C	-10 °C	26 AWG	0.04 in	1.02 mm	Oil Resistant	7	0.0063 in	Copper Tinned	0.25 mm	0.01 in	15.24 m	50 ft 100 ft 500 '	UL Style 10368	30.5 m 152.4 m	Polyethylene (XLPE) Irradiated	Hook-Up	Orange

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 16.53
		1	$ 5.81
		1	$ 10.23
		2	$ 9.73
		2	$ 5.51
		3	$ 15.45
		4	$ 5.26
		5	$ 14.70
		5	$ 9.09
		10	$ 4.92
		10	$ 8.65
		10	$ 14.03
		20	$ 8.26
		20	$ 4.70
		25	$ 13.11
		40	$ 4.46
		50	$ 12.52
		50	$ 7.72
		100	$ 4.19
		100	$ 11.86
		100	$ 7.37
		200	$ 3.97
		200	$ 6.98
		400	$ 3.78
		500	$ 0.16
		500	$ 6.54
		500	$ 10.85
		1000	$ 0.15
		2500	$ 0.14
		5000	$ 0.14
		12500	$ 0.13
		25000	$ 0.12
		50000	$ 0.11
