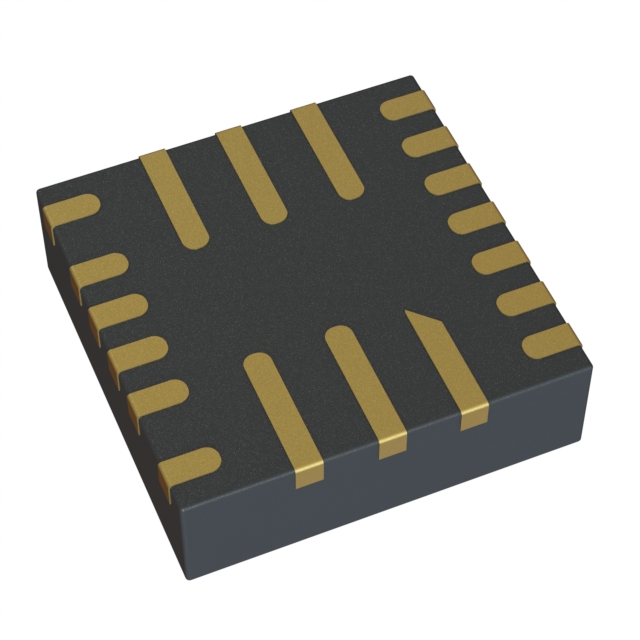

MP6519GQ-Z
ActiveMONOLITHIC POWER SYSTEMS (MPS)
2.5V - 28V, 5A, H-BRIDGE CURRENT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MP6519GQ-Z
ActiveMONOLITHIC POWER SYSTEMS (MPS)
2.5V - 28V, 5A, H-BRIDGE CURRENT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MP6519GQ-Z |
|---|---|
| Applications | General Purpose |
| Current - Output | 5 A |
| Function | Driver |
| Interface | PWM |
| Motor Type - AC, DC | Brushed DC |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Half Bridge (2) |
| Package / Case | 19-VFQFN |
| Supplier Device Package | 19-QFN (3x3) |
| Technology | Power MOSFET |
| Voltage - Load [Max] | 28 V |
| Voltage - Load [Min] | 2.5 V |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.95 | |
| 10 | $ 2.65 | |||
| 25 | $ 2.50 | |||
| 100 | $ 2.13 | |||
| 250 | $ 2.00 | |||
| 500 | $ 1.75 | |||
| 1000 | $ 1.45 | |||
| 2500 | $ 1.35 | |||
| Digi-Reel® | 1 | $ 2.95 | ||
| 10 | $ 2.65 | |||
| 25 | $ 2.50 | |||
| 100 | $ 2.13 | |||
| 250 | $ 2.00 | |||
| 500 | $ 1.75 | |||
| 1000 | $ 1.45 | |||
| 2500 | $ 1.35 | |||
| Tape & Reel (TR) | 5000 | $ 1.30 | ||
Description
General part information
MP6519 Series
Motor Driver Power MOSFET PWM 19-QFN (3x3)
