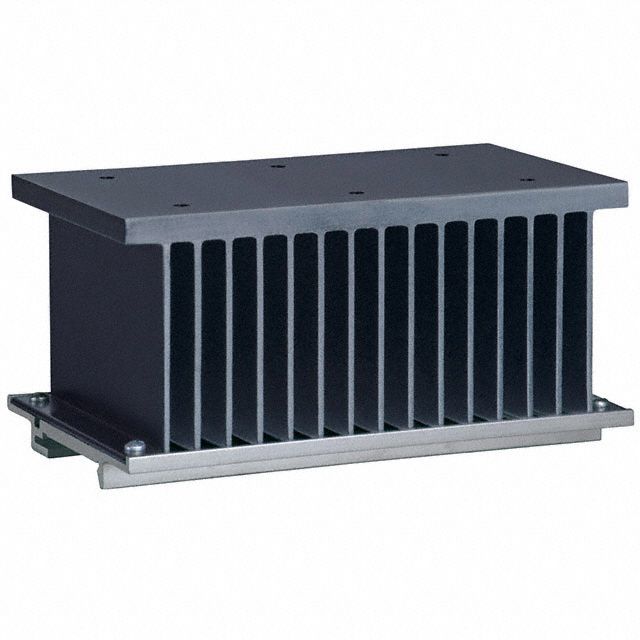

HS103DR

Active

Sensata-Crydom

HEATSINK SSR 1.0DEG C/W DIN MNT

Search across all available documentation for this part.

Active

Sensata-Crydom

HEATSINK SSR 1.0DEG C/W DIN MNT

Technical Specifications

Parameters and characteristics for this part

Specification	HS103DR

Accessory Type	Heat Sink
For Use With/Related Products	Multiple Series

Part	Output Type	Approval Agency	Mounting Type	Termination Style	Voltage - Load [Min]	Voltage - Load [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Load Current	Package / Case	Voltage - Input [Max]	Voltage - Input [Min]	For Use With/Related Products	Accessory Type
Sensata-Crydom HS103-D53TP25D	AC	CE CSA UL VDE	DIN Rail	Screw Terminal	48 V	660 V	-40 °C	80 C	65 A	Hockey Puck with Heat Sink	32 V	3 V
Sensata-Crydom HS103-3DC60D100	AC	CE CSA UL VDE	DIN Rail	Screw Terminal	48 V	660 V	-40 °C	80 C	65 A	Module	32 V	3 V
Sensata-Crydom HS103DR													Multiple Series	Heat Sink
Sensata-Crydom HS103DR-D53TP25D	AC	CE CSA UL VDE	DIN Rail	Screw Terminal	48 V	660 V	-40 °C	80 C	65 A	Hockey Puck with Heat Sink	32 V	3 V
Sensata-Crydom HS103-D1240-B	AC	CE CSA UL VDE	DIN Rail	Screw Terminal	48 V	660 V	-40 °C	80 C	65 A	Module	32 V	3 V
Sensata-Crydom HS103DR-D2490	AC	CE CSA UL VDE	DIN Rail	Screw Terminal	48 V	660 V	-40 °C	80 C	65 A	Hockey Puck with Heat Sink	32 V	3 V
Sensata-Crydom HS103DR-D53TP50D	AC	CE CSA UL VDE	Chassis Mount	Screw Terminal	48 V	660 V	-40 °C	80 C	65 A	Hockey Puck with Heat Sink	32 V	3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink Multiple Series
