ED350/4

Active

On Shore Technology Inc.

TERM BLK 4POS SIDE ENTRY 5MM PCB

Search across all available documentation for this part.

Active

On Shore Technology Inc.

TERM BLK 4POS SIDE ENTRY 5MM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	ED350/4

Clamp Material - Plating	Copper
Color	Green
Contact Material - Plating [custom]	Brass
Current	16 A
Housing Material	Polyamide (PA), Nylon
Mating Orientation	Horizontal with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	4
Screw Thread	M3
Torque - Screw	4.4 Lb-In
Torque - Screw	0.5 Nm
Voltage	300 V
Wire Gauge [Max]	28 AWG
Wire Gauge [Min]	12 AWG
Wire Termination	Screw - Rising Cage Clamp

Part	Current	Color	Torque - Screw	Torque - Screw	Positions Per Level	Housing Material	Mating Orientation	Wire Termination	Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Number of Levels	Wire Gauge [Min]	Wire Gauge [Max]	Clamp Material - Plating	Contact Material - Plating [custom]	Screw Thread	Mounting Type	Pitch [x]	Pitch [x]
On Shore Technology Inc. ED350/5	16 A	Green	4.4 Lb-In	0.5 Nm	5	Polyamide (PA) Nylon	Horizontal with Board	Screw - Rising Cage Clamp	300 V	-30 ░C	105 ░C	1	12 AWG	28 AWG	Copper	Brass	M3	Through Hole	5 mm	0.197 in
On Shore Technology Inc. ED350/4	16 A	Green	4.4 Lb-In	0.5 Nm	4	Polyamide (PA) Nylon	Horizontal with Board	Screw - Rising Cage Clamp	300 V	-30 ░C	105 ░C	1	12 AWG	28 AWG	Copper	Brass	M3	Through Hole	5 mm	0.197 in
On Shore Technology Inc. ED350/2	16 A	Green	4.4 Lb-In	0.5 Nm	2	Polyamide (PA) Nylon	Horizontal with Board	Screw - Rising Cage Clamp	300 V	-30 ░C	105 ░C	1	12 AWG	28 AWG	Copper	Brass	M3	Through Hole	5 mm	0.197 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

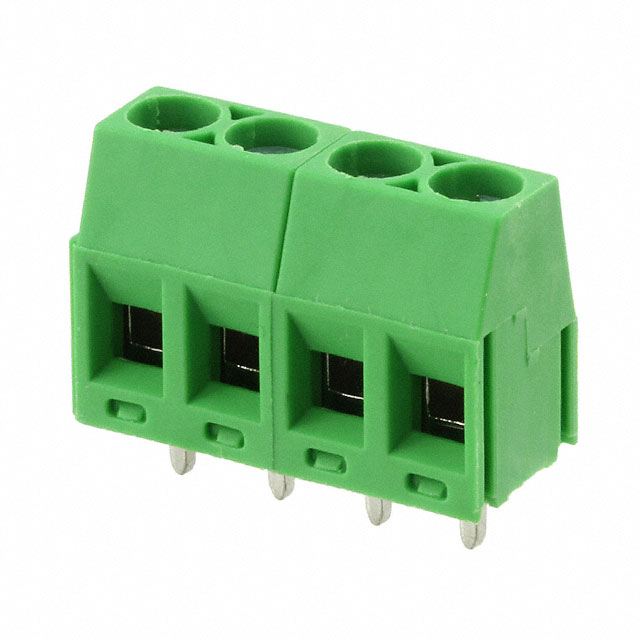

4 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
